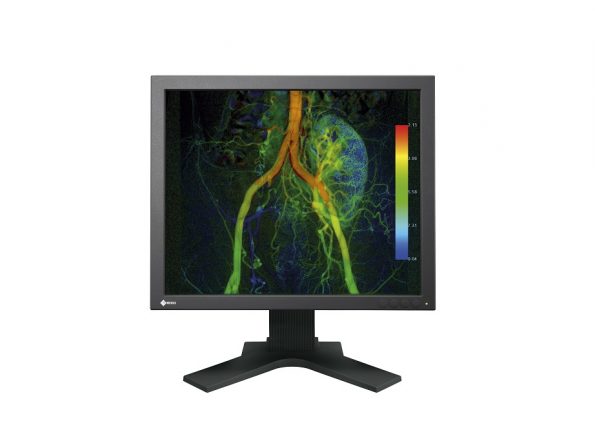

CuratOR EX190 19″

Τιμή:

This high-brightness color monitor for diagnosis is perfect for accurate displaying of grayscale tones as well as color images in the medical environment. The monitor accepts multiple input signals from both state of the art and legacy systems. Its high contrast creates the perfect fit for most grayscale modalities and imaging systems. Typical application areas are endoscopy, cardiology and ultrasound.

  • Five precalibrated 10 bit look up tables selectable for diverse modalities and viewing environments.
  • Freely adjustable user lookup table allowing users to set their own preferences.
  • Color slider for color adjustment in the field without the loss of grayscale tones.
  • Grayscale tones adjusted in the factory to meet DICOM Part 14 standard for optimum viewing of DICOM images.
  • Force Mode for tailoring the monitor to even the most specialized timing requirements.
  • Wide range of input support.

Τιμή:


Perfect Image Reproduction thanks to IPS LCD Technology

The LCD technology used eliminates picture geometry distortions and color spots. The monitor delivers flicker-free images, even at low refresh rates (60 Hz). In addition, IPS technology guarantees improved contrast values and significantly higher viewing angle stability. The result is a device that meets the highest ergonomic requirements.

Individualized Color Point Adjustment

The monitor’s default blue color location can be adjusted to individual requirements using a color slider. This enables color adjustment in the field such as when replacing a monitor. The adjustment can be performed via the On Screen Display (OSD) without external tools such as a luminance meter or calibration software.

Freely Adjustable User Lookup Table (LUT)

The adjustable LUT makes it possible for LUT recalculations to be initiated manually. Within this recalculation the gamma model, luminance settings, or color parameters can be modified. The LUT is calculated via OSD menu without having to access external calibration software. The reset LUT is calculated immediately, saved in the device, and used immediately for image display. This provides the user with the ability to establish the user LUT individually without using luminance meter.

Support of Complex Timing Requirements

Although the monitor automatically detects standard video signals, older medical devices frequently cause problems due to their unusual timing. These special application requirements can be met using the Force Mode function.

Consistency thanks to DICOM Part 14 Factory Calibration

The monitor is precalibrated to meet the DICOM Part 14 standard, thereby ensuring permanently consistent image transmission. The five default look-up tables (LUTs) contain practice-based settings. They take into account the DIN 6868-157 room classes, thereby meeting current pecifications for diagnostic monitors.

Display of Different Signal Resolutions

The optimum screen resolution is 1280 x 1024 pixels. Video signals with other resolutions, common in medical technology, are automatically adapted to the screen size. Alternatively they can be displayed in original size (1:1).

Constant Luminance Regulation

An integrated brightness sensor, using EIZO fully automated brightness control, ensures fast luminance stabilization during system start and compensates for fluctuations that occur in the course of operation due to differing ambient temperatures.

Installation on a VESA Ceiling Suspension

Compliance with the VESA standard enables attachment to existing mounting accessories.

Cascading multiple monitors

The integrated Loop-Through output (BNC video / SoG signal) enables connection with multiple other monitors or image archiving in the operating room.

Customer Assurance with Medical Standards

The monitor meets the strictest medical safety and EMC emission standards.

Versatile Positioning for Improved Ergonomics

EIZO’s highly versatile stand offers tilt, swivel and a wide height adjustment range enabling you to use the monitor with greater comfort.

Environmentally-Friendly LED Backlight

By utilizing an energy-efficient LED as a backlight, the monitor achieves a high-brightness and low power consumption at the same time. In contrast to conventional CCFL technology, LED backlighting offers a longer monitor lifespan, is free of hazardous materials, and is therefore compliant with current environmental regulations.

Specifications

General

Model Variations EX190: Without Stand
EX190-S: With Stand
Cabinet Color Black
Certifications & Standards (Please contact EIZO for the latest information) CE (Medical Device), IEC/EN60601-1, CAN/CSA C22.2 No. 601.1-M90, CAN/CSA C22.2 No. 60601-1-08, UL60601-1, FCC-A, RCM, RoHS, China RoHS, WEEE, CCC, BIS (EX190-S only)
Supplied Accessories AC power cord (eu, us, cn, jp), signal cables (DVI-D – DVI-D, DisplayPort), adapter (DVI – VGA), utility disk (PDF instructions for use)

Panel

Type Color TFT LCD Panel (IPS)
Backlight LED
Size 48 cm / 19″
Native Resolution 1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V) 376.0 x 301.0 mm
Pixel Pitch 0.294 x 0.294 mm
Display Colors 8-bit colors: 16.77 million colors
Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 700 cd/m²
Recommended Brightness for Calibration 400 cd/m²
Contrast Ratio (typical) 900:1
Response Time (typical) 14 ms (on/off)

Video Signals

Input Terminals DisplayPort (DVI signal), DVI-I (digital and analog RGBHV), BNC (SoG-Signal)
Digital Scanning Frequency (H / V) 30 – 80 kHz / 60 – 75 Hz
Analog Scanning Frequency (H / V) 30 – 80 kHz / 50 – 85 Hz
Sync Formats Sync Separate, Composite Sync and SoG

Interface Specifications

Output Terminals BNC (SoG signal, Loop-Through)
USB Ports Upstream
USB 2.0: Type-BDownstream
USB 2.0: Type-A x 2

Features & Functions

Miscellaneous Color Slider, Force Mode
Sensor Backlight Sensor
OSD Languages English, German

Power

Power Requirements AC 100 – 240 V: 50 / 60 Hz
Maximum Power Consumption Less than 58W
Power Save Mode Less than 8 W
Power Management Digital: DVI DMPM, Analog: VESA DPM

Environmental Requirements

Degree of Protection IP20

Physical Specifications

Net Weight EX190-S: 8.1 kg
Net Weight (Without Stand) EX190: 5.1 kg
Hole Spacing (VESA Standard) 100 x 100 mm, M4, depth 5 – 10 mm

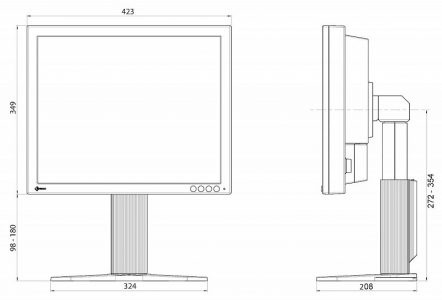

Dimensions
