The LMM0802 is a Large Monitor Manager for 2, 4 and 8 megapixel monitors. It gathers various video inputs and display them on the large screen. Different layouts can be arranged according to user preferences and working situation. This simplifies the surgeon’s individual workflow.

• Small dimensions allow easy installation in existing systems.
• Single and Dual Workspace supported.
• Video signal is valid at the output within 4 seconds after switching on.
• Long product life cycle by using ling term available parts.
• Maximum image latency of one frame (input to output).
• Switch time between layouts sets less than 0.5 second with flicker-free picture.
• Scaler output allows distribution of arranged image to HD monitor or recording system.

The TID0102 splits the DVI signal from the LMM0804 into two configurable signals. The TID0102-HDL provides additional HDL transmission technology to enable video transmission via traditional CAT cables at a distance of up to 70 m.

• TID0102-DVI or TID0102-HDL model available
• Flexible, configurable video output
• Variable EDID (Extended Display Identification Data) handling
• Automatic monitor detection at output

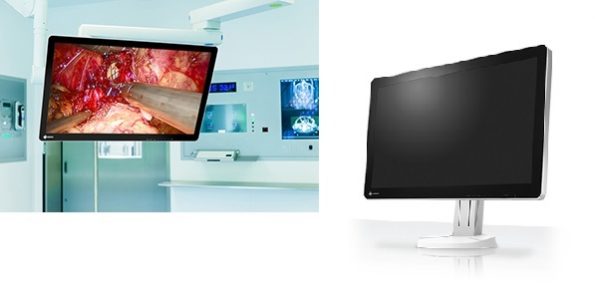

Faithfully reproduce 4K UHD stereoscopic images with this 31.1-inch widescreen 3D surgical monitor.

• 31.1-inch LCD monitor with 4K UHD (3840 x 2160 pixels) resolution
• Smart Resolution with Sparse Coding (S.R.S.C.) for high definition images
• DisplayPort 1.2 for easy connection and 12G-SDI (BNC) for long-distance connectivity
• High IP rating ideal for maintaining a sterilized operating room environment
• Optical bonding for reduced reflections, high durability and condensation prevention
• Battery-free, fogless glasses for clearly and comfortably viewing 3D images

This 49” widescreen monitor is ideally suited for viewing medical images under OR conditions. Numerous input and output signals, image combination capabilities, and gamma models pre-calibrated at the factory enable its use within the widest range of applications. With its fan-free design and water-tight, easy to clean front, the monitor is perfectly suited for sterile hospital environments.

• Five factory-set look up tables according to DICOM and Gamma 2.2 for optimal image reproduction
• Fast adaptation to various environments and procedures
• Numerous video inputs and outputs for increased connectivity
• Flexible image arrangement thanks to the Picture-in-Picture (PiP) and Picture-at-Picture (PaP) functions
• Fully automated brightness stability using ISS (Integrated Stability System)

With TIP0210-DVI, image and video data, as well as control signals, can be transmitted with zero latency or loss in a 10 Gbit network. As a result, a flexible video routing can be realized using standardized, forwardlooking network technology.

• Uncompressed, loss-free data transmission of 10 Gbit/s
• Transmission with zero latency, for better hand-eye coordination
• One device per software can be used as a decoder and encoder
• Up to two video links per device can be processed
• Multiple views on a monitor possible through one signal
• Passive cooling

The Surgical Panel SP1-49 with integrated 49” monitor as well as build-in IT and video management components is a digital image viewing system, designed for use in the operating room. Integrated into the hospital’s IT structure, it supports various workflows. The SP1-49 provides the surgeon and his team with a perfect view also from remote locatios in the operating room.

• Built-in 49” monitor (touchscreen option)
• Workstation for image viewing
• Space-saving wall mounting
• High ease of service and maintanance
• Flexible choice of material, configuration and accessories
• Completely sealed within the OR and disinfectible

57.5-inch monitor with 4K UHD resolution for use in Hybrid ORs and interventional radiology.

• Ideal for displaying medical images for angiography, cardiology and radiology
• Monitor calibration during production according to DICOM Part 14
• Integrated stability system for maintaining the calibration
• Designed for cost effective videomanagement solutions

Display high-definition images on this 31.1-inch 4K UHD surgical monitor.

• 31.1-inch LCD monitor with 4K UHD (3840 x 2160 pixels) resolution
• Smart Resolution with Sparse Coding (S.R.S.C.) for high definition images
• DisplayPort 1.2 for easy connection and 3G-SDI (BNC) for long-distance connectivity
• Sleek design with fully-flat protective glass and rounded corners for comfort and safety in the operating room
• High IP rating ideal for maintaining a sterilized operating room environment

The SCD 19102 produces color and gray scale images for the accurate, high-speed presentation of motion studies and dynamic images in endoscopy, surgery, cardiac imaging, and ultrasound. Like all displays from EIZO, the device is pre-calibrated in the factory. The five integrated look-up tables (LUTs) loaded with practice-oriented settings of high image quality are stored in the display enabling the use of standard graphics boards. The display can be set and re-calibrated in the field in accordance with the CIE or DICOM (Digital Imaging and Communications in Medicine) standard.

• 19-inch LCD module with 1 megapixel resolution offering a maximum brightness of 330 cd/m²
• Fully automated luminance stability through the Integrated Stability System (ISS)
• CIE/DICOM compliant gray scale response built into the display
• Adjustable color point for optimized display matching
• Fully supported by the RadiCS quality assurance tool
• 5 user defined 10 bit look up tables adaptable to diverse reading and viewing environments
• Gamma response calibrated during manufacturing to provide consistent image quality from one display to the next
• State of the art video signal rendering; video standards: PAL, NTSC
• Force Mode for tailoring the display to even the most specialized timing requirements

The Large Monitor Manager LMM0804 enables digital and analog images from various sources to be arranged flexibly on large-format or multiple monitors. The LMM0804 has been designed for use in operating rooms, where an extremely flexible image display is required during surgery. At the same time, the image content for each individual unit can be defined separately.

• Small and compact size allows easy installation in existing systems.
• Up to 8 signal sources can be displayed simultaneously on a maximum of 5 connected monitors.
• The monitors can be connected over a distance of up to 36 m.
• Image is available within 4 secondes after system reboot.
• Maximum image latency of one frame (input to output) provides almost real-time image).

The PDC0100 converts analog video signals into digital DVI format. This allows existing analog systems and devices that use digital signals to be combined. With a range of accessories and high interconnectivity, the converter allows maximum flexibility for integration into existing systems.
