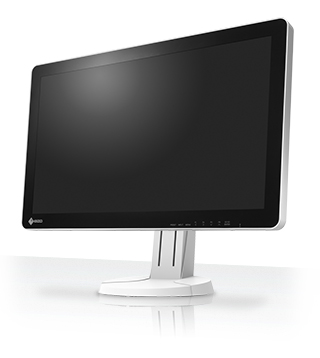

Faithfully reproduce stereoscopic images with this 26-inch widescreen 3D surgical monitor.
- 26-inch LCD monitor with full HD resolution (1920 x 1080 pixels)
- Powerful LED backlight with 580 cd/m² luminance for optimal viewing in bright operating rooms
- High IP rating and fanless design ideal for maintaining a sterilized OR environment
- Optical bonding for reduced reflections, high durability and condensation prevention
- Battery-free, fogless glasses for clearly and comfortably viewing 3D images
- Sleek design with fully-flat protective glass and rounded corners for comfort and safety in the operating room
Τιμή:

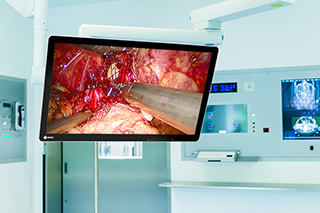

3D Surgical Display with High Visibility
This monitor uses a 3D LCD panel with an LED backlight, a brightness of 580 cd/m² and a contrast ratio of 1400:1. It displays in full HD resolution, and faithfully reproduces 3D surgical images for endoscopy and operation microscope feeds; creating a feeling of depth where stereoscopic imagery is required.

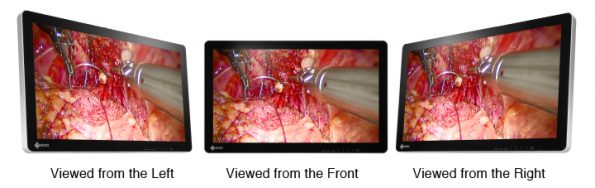

Comfortably View from Any Angle
It has a viewing angle of 178 degrees so images can be viewed from various directions with minimal changes in contrast.
Fully Flat Design
Operating rooms contain various medical devices that are arranged by the type of surgery being undertaken. In consideration of safety, EIZO’s surgical monitors adopt rounded corners. The front is covered with a fully flat protective glass that is dustproof and waterproof (Monitor front: IP45, overall: IP32).

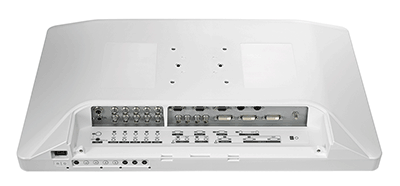

Cable Cover for Safety and Hygiene
As it is fanless, there is no fan vent; making it easy to clean and disinfect. Cables can be neatly stored in the cable cover, improving safety and hygiene in the operating room.
Reduced Reflections
Reflections on the screen of LCD monitors are caused when external light hits the screen and reflects off of the protective glass and layer of air at different refractive indices. Optical bonding removes the layer of air in order to lower the difference of refractive indices. This softens the reflections on the screen and produces a clear, highly visible image without affecting contrast.
High Durability
The monitor has protective glass with a hardness of 9H, making it resistant to impacts. Furthermore, the monitor is equipped with optical bonding, which removes the layer of air between the LCD panel and glass. This ensures foreign materials such as dust and moisture cannot damage the LCD panel.
Condensation Prevention
With optical bonding, condensation cannot form between the LCD panel and protective glass so the monitor can be used in environments with wide temperature ranges without affecting visibility.
Bright and Flicker-Free 3D Image
The CuratOR EX2620-3D uses a polarized system for displaying 3D images with excellent color characteristics and without flicker.
The Advantages of Using Polarized 3D Technology for Surgeries
Lightweight, Anti-Fog 3D Glasses for Clear Vision
The supplied 3D polarizing glasses required to view images in 3D do not require batteries for operation and are lightweight. This makes them perfect for long surgeries where heavy, battery operated glasses may fail and become uncomfortable. Furthermore, the glasses have an anti-fog coating to prevent fog and maintain clear vision even when wearing a surgical mask.
Various 3D Signal Format Support
The monitor support Side by Side, Line by Line, Top/Bottom, and SIMUL 3D signal formats.
3D-mode: 180 Degree Rotation
Regardless of the orientation of the endoscopic camera, you can display the image in a direction that is easy to see.
3D-mode: Parallax Adjustment
With the parallax adjustment function, you can adjust 3D images both vertically and horizontally so that it displays a natural sense of depth.
2D-mode: Picture by Picture Support
Two separate signal sources can be viewed simultaneously on the one monitor screen side by side.
2D-mode: Adjust Screens Individually
When displaying two signal sources side by side on the same screen, each image can be adjusted without interfering with the other screen. This is perfect for multi-modality use.
2D-mode: 180 Degree Rotation and Mirroring
Regardless of the orientation of the surgical camera, you can rotate or mirror the screen by 180 degrees to achieve the perfect operating view.

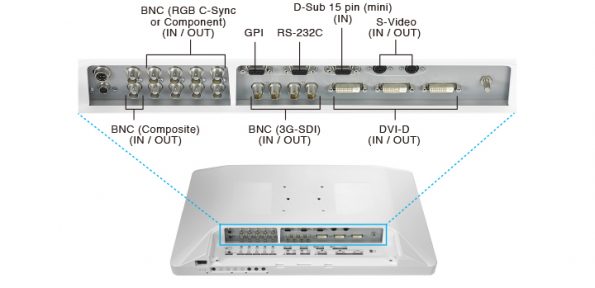

Various Input/Output Signal Support
The monitor supports various video input/output signals for connecting to various types of modality equipment. Furthermore GPI and RS-232C allows you to externally control 3D/2D display switching, input signals and screen rotation, so that you can change the display in conjunction with the settings of the surgical equipment being used.
Fanless and Silent
The monitor is designed to dispel heat without the use of cooling fans. This creates a quiet, reliable monitor that doesn’t interfere with the air flow in the operating room.
Standard VESA Mounting for Convenient Installation
The monitor supports VESA mounting standards so that it can be installed in various locations such as from ceiling arms and wall hangings.
Rest Assured with Medical Qualifications
In order to realize safe and reliable monitors that can be used with confidence at any medical institution, EIZO acquires various medical standards and safety/EMC standards.
Our Contribution to SDG
As part of its corporate social responsibility (CSR) activities, EIZO is contributing towards the United Nations’ Sustainable Development Goals (SDGs).
Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.
Learn more
Environmentally Friendly
Our healthcare products are designed to promote energy efficiency for reduced power consumption and CO2 emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.
Learn more
Specifications
General
| Model Variations | EX2620-WT: without stand |
|---|---|
| Cabinet Color | Black (front), white (rear) |
| Certifications & Standards (Please contact EIZO for the latest information) | CE (Medical Device), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-A, FCC-A, CAN ICES-3(A), RCM, RoHS, China RoHS, WEEE, CCC, EAC, BIS |
| FDA | Class I |
| Supplied Accessories | (May vary by country. Please contact EIZO for details) AC power cord, AC adapter, screws for VESA adapter x 4, 3D fogless polarized glasses x 3, cable cover, Utility Disk (PDF installation manual), instructions for use |
Panel
| Type | Color (IPS) |
|---|---|
| Backlight | LED |
| Size | 66.1 cm / 26.0″ |
| Native Resolution | 1920 x 1080 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 576 x 324 mm |
| Pixel Pitch | 0.300 x 0.300 mm |
| Display Colors | 10-bit colors (SDI) : 1.07 billion (maximum) colors 8-bit colors: 16.77 million colors |
| Viewing Angles (H / V, typical) | 178° / 178° (2D mode) |
| Brightness (typical) | 580 cd/m² |
| Contrast Ratio (typical) | 1400:1 |
| Response Time (typical) | 18 ms (black-white-black) |
| Gamut Coverage (typical) | sRGB |
Video Signals
| Input Terminals | BNC (3G-SDI) x 2, DVI-D x 2 (HDCP 1.4), D-Sub 15 pin (mini), BNC (RGB C-Sync or Component), S-Video, BNC (Composite) |
|---|---|
| Output Terminals | Loop Through: BNC (3G-SDI) x 2, DVI-D, BNC (RGB C-Sync or Component), S-Video, BNC (Composite) |
| Digital Scanning Frequency (H / V) | 15 – 75 kHz / 24 – 60 Hz |
| Analog Scanning Frequency (H / V) | 15 – 80 kHz / 24 – 85 Hz |
| Sync Formats | Separate, Composite, Sync on green |
Features & Functions
| Miscellaneous | 3D (Side by Side, Line by Line, Top and Bottom, SIMUL), Remote control (RS-232C, GPI), PiP, PoP, Optical Bonding |
|---|---|
| OSD Languages | English, German, French, Italian, Spanish, Swedish, Japanese, Simplified Chinese, Traditional Chinese |
Power
| Power Requirements | AC 100 – 240 V: 50 / 60 Hz |
|---|---|
| Maximum Power Consumption | 95 W |
Environmental Requirements
| Degree of Protection | IP45 (Front), IP32 (Rear) |
|---|
Physical Specifications
| Net Weight | 8.5 kg |
|---|---|
| Hole Spacing (VESA Standard) | 100 x 100 mm, M4, depth 5 – 9 mm |
Dimensions
