The LMM0802 is a Large Monitor Manager for 2, 4 and 8 megapixel monitors. It gathers various video inputs and display them on the large screen. Different layouts can be arranged according to user preferences and working situation. This simplifies the surgeon’s individual workflow.

• Small dimensions allow easy installation in existing systems.
• Single and Dual Workspace supported.
• Video signal is valid at the output within 4 seconds after switching on.
• Long product life cycle by using ling term available parts.
• Maximum image latency of one frame (input to output).
• Switch time between layouts sets less than 0.5 second with flicker-free picture.
• Scaler output allows distribution of arranged image to HD monitor or recording system.

The SCD 19102 produces color and gray scale images for the accurate, high-speed presentation of motion studies and dynamic images in endoscopy, surgery, cardiac imaging, and ultrasound. Like all displays from EIZO, the device is pre-calibrated in the factory. The five integrated look-up tables (LUTs) loaded with practice-oriented settings of high image quality are stored in the display enabling the use of standard graphics boards. The display can be set and re-calibrated in the field in accordance with the CIE or DICOM (Digital Imaging and Communications in Medicine) standard.

• 19-inch LCD module with 1 megapixel resolution offering a maximum brightness of 330 cd/m²
• Fully automated luminance stability through the Integrated Stability System (ISS)
• CIE/DICOM compliant gray scale response built into the display
• Adjustable color point for optimized display matching
• Fully supported by the RadiCS quality assurance tool
• 5 user defined 10 bit look up tables adaptable to diverse reading and viewing environments
• Gamma response calibrated during manufacturing to provide consistent image quality from one display to the next
• State of the art video signal rendering; video standards: PAL, NTSC
• Force Mode for tailoring the display to even the most specialized timing requirements

Faithfully reproduce 4K UHD stereoscopic images with this 31.1-inch widescreen 3D surgical monitor.

• 31.1-inch LCD monitor with 4K UHD (3840 x 2160 pixels) resolution
• Smart Resolution with Sparse Coding (S.R.S.C.) for high definition images
• DisplayPort 1.2 for easy connection and 12G-SDI (BNC) for long-distance connectivity
• High IP rating ideal for maintaining a sterilized operating room environment
• Optical bonding for reduced reflections, high durability and condensation prevention
• Battery-free, fogless glasses for clearly and comfortably viewing 3D images

57.5-inch monitor with 4K UHD resolution for use in Hybrid ORs and interventional radiology.

• Ideal for displaying medical images for angiography, cardiology and radiology

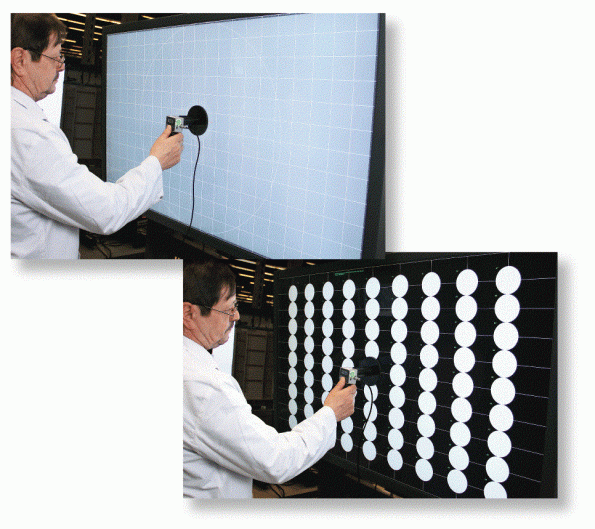

• Monitor calibration during production according to DICOM Part 14

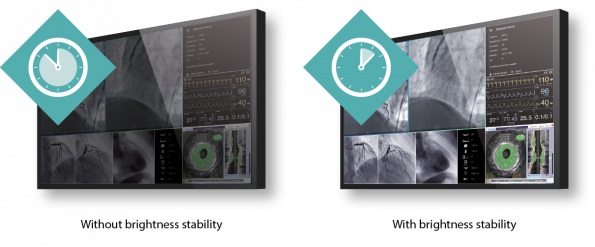

• Integrated stability system for maintaining the calibration
• Designed for cost effective videomanagement solutions

With TIP0410-HDMI, image and video data, as well as control signals, can be transmitted with zero latency or loss in a 10 Gbit network. As a result, a flexible video routing can be realized using standardized, forwardlooking network technology.

• Uncompressed, loss-free data transmission of 10 Gbit/s
• Transmission with zero latency, for better hand-eye coordination
• One device can be used as a decoder and encoder
• Up to two video links per device can be processed

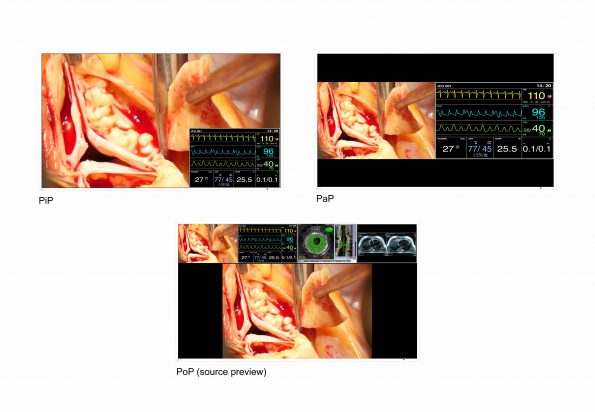

• Multiple views on a monitor possible through one signal
• Passive cooling

Display high-definition images on this 31.1-inch 4K UHD surgical monitor.

• 31.1-inch LCD monitor with 4K UHD (3840 x 2160 pixels) resolution
• Smart Resolution with Sparse Coding (S.R.S.C.) for high definition images
• DisplayPort 1.2 for easy connection and 3G-SDI (BNC) for long-distance connectivity
• Sleek design with fully-flat protective glass and rounded corners for comfort and safety in the operating room
• High IP rating ideal for maintaining a sterilized operating room environment

The constantly growing number of medical devices and equipment used in the OR is a major challenge for OR and nursing staff. This is because, even in stressful situations, they have to be able to operate the equipment without making an error. Different user interfaces and systems that are not compatible with one another sometimes force the OR team into using awkward workflows.

With CuratOR Caliop, EIZO has developed an integration software that centralizes key OR-workflows on a single platform.

• Simple and intuitive menu navigation
• Manufacturer-independent integration
• Designed for use with mouse and touchscreen as well as remotely (foot switch / endoscope head buttons)
• Only one user interface is necessary
• Modules can be added on and additional elements can be purchased later
• Saves time and money
• Uncomplicated administration

58-inch widescreen surgical monitor with 4K UHD display that faithfully reproduces surgical images.

• 58-inch LCD monitor with 4K UHD (3840 x 2160 pixels) resolution
• Picture reproduction without delay and flicker
• DisplayPort 1.2 for easy connection
• 12G-SDI (BNC) for long-distance connectivity
• High IP rating ideal for maintaining a sterilized operating room environment

A 26-inch wide screen surgical monitor with full HD display that faithfully reproduces surgical images.

• 26-inch LCD monitor with full HD resolution (1920 x 1080 pixels)
• Powerful LED backlight with 700 cd/m² luminance for optimal viewing in bright operating rooms

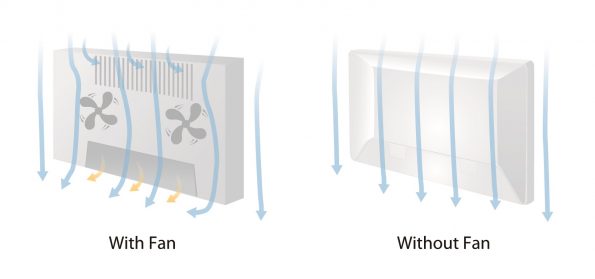

• High IP rating and fanless design ideal for maintaining a sterilized OR environment
• Sleek design with fully-flat protective panel and rounded corners for comfort and safety in the operating room

The Surgical Panel SP2-24 with two integrated monitors as well as build-in IT and video management components is a digital image viewing system, designed for use in the operating room. Integrated into the hospital’s IT structure, it supports various workflows. The SP2-24 forms a space-saving combination of HIS and PACS station. Different applications are covered by just one device.

• Two built-in 24” monitors
• Workstation for image viewing and documentation
• Space-saving wall mounting
• High ease of service and maintanance
• Flexible choice of material, configuration and accessories
• Completely sealed within the OR and disinfectible

This Full HD widescreen monitor is ideally suited for viewing images in surgical environments. With its modular design, the EX271W is streamlined as a future-safe platform for evolving environments and further integration into a wider system.

• 27-inch LCD module with 1080p (Full HD) resolution (1920 x 1080 pixels).
• Powerful LED backlight with over 500 cd/m² luminance for an optimal presentation of critical images.
• 5 factory calibrated look-up tables for quick and easy adaptation to diverse application and viewing environments.
• Modular concept for targeted integration into current and future systems.
• Sleek, encapsulated design with laminated safety glass and an unsurpassed IP rating ideally suited to the OR environment.

The large 55-inch screen with 4K UHD resolution is ideal for displaying medical images for angiography, cardiology or endoscopy in medical environments and can be mounted on a wall or ceiling mount. The monitor’s redundant components and LED backlight make it ideal for long-term stable and reliable use in the operating room.

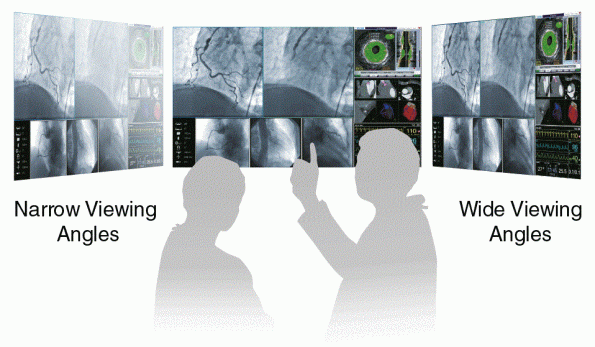

• Wide viewing angle with IPS LCD technology.
• Quick on-site adjustment to different image types and prevailing ambient brightness.

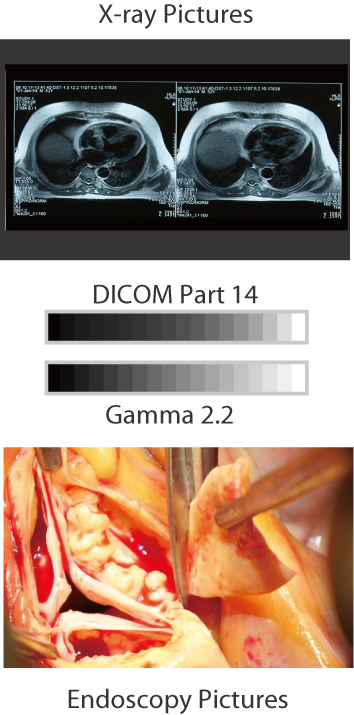

• Grayscale tones adjusted at the factory to meet DICOM Part 14 standard for optimum viewing of medical DICOM images.
• Redundant components architecture for a high degree of operational reliability.
• Homogeneous brightness uniformity across the entire screen.
