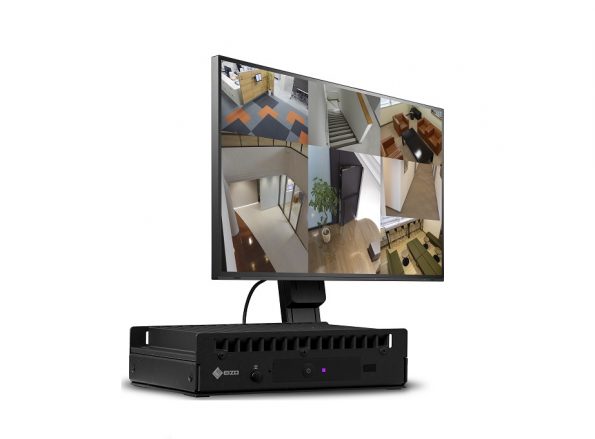

DuraVision DX0211-IP

Τιμή:

Manage Multiple Monitors Easily

The DuraVision DX0211-IP is an ideal solution for video walls and multi-monitor security environments. It features powerful decoding performance, flexible video management, and a compact design.

Τιμή:


Solutions for Every Market

EIZO’s IP decoding solutions provide high performance, long-term reliability, and flexible installation to a wide range of environments.

Integrated Solution

The DuraVision DX0211-IP connects to an IP camera or switch and streams video directly to a connected monitor. It does not require a PC, software, or other hardware to operate, greatly simplifying installation and saving on time and labor costs. This also eliminates several potential points of failure and addresses security concerns typical of a conventional setup by heavily reducing the amount of equipment needed to manage sensitive visual data.

Innovative Decoding Technology in Box Form

The DuraVision DX0211-IP brings EIZO’s innovative decoding technology from its unique IP decoding monitors to an external box format. It decodes multiple feeds from IP cameras for displaying video in real time. It can be used with varying monitor sizes and resolutions, making it ideal for video walls and multi-monitor environments.

Video Decoding

The DuraVision DX0211-IP can decode H.265 (HEVC), as well as H.264 and MJPEG codecs, displaying them in real time for assessing any situation quickly. In addition, the decoding technology ensures a high fps (frames-per-second) for displayed content, even when streaming high-resolution video. For example, 16 Full HD (1920 x 1080) video feeds displayed simultaneously on a single monitor achieve a consistent 20 fps.
Examples of framerate at different resolution and screen combinations.

4K Output to Dual Monitors

The DuraVision DX0211-IP is equipped with two HDMI outputs that support 4K UHD resolution (3840 x 2160) on up to two monitors. This allows users to view two monitors side-by-side in an extended display, or flexibly combine different resolutions, such as Full HD and 4K, for an optimal multi-monitor viewing environment.

Secure Investment with Support for Over 250 Cameras

The DuraVision DX0211-IP supports cameras with ONVIF Profile S, Axis VAPIX, and Panasonic protocols for flexible installation and ensured interoperability with a wide range of products. In addition, a direct connection through RTSP is available (Direct URI).

Onvif



Camera compatibility details

Register up to 48 IP Cameras

Up to 48 different IP cameras, including 4K cameras, can be registered to the IP box through the intuitive web UI. Cameras can be discovered automatically or registered manually, and individual settings are easily managed from a central location.

Live Streaming Directly from IP Cameras

Connecting IP cameras directly to the DuraVision DX0211-IP allows for the live streaming of video without a decentralized recording solution, such as edge recording or cloud archiving. This provides a solution for scenarios which require live streaming without the storage of recorded images.

Features for Ease-of-Use

Adjustable Screen Layout

With the user-friendly web UI, you can easily adjust the layout of the video streams with 7 default options, displaying up to 32 screens simultaneously across 1 or 2 monitors. In addition, flexible arrangement of the screens on each monitor in a custom layout allows you to fulfill individual viewing needs. With custom layout you can merge individual windows to focus on specific areas, or split them to see more on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.

Sequential Lock

When using the sequential image display setting, users can select an image to remain static, even through page changes. This allows operators to keep eyes on a single focus point while maintaining  coverage in several other areas.

Privacy Mask

The DuraVision DX0211-IP allows users to assign static privacy masks for live viewing environments. The privacy mask is applied directly to the image displayed on the monitor without altering the source stream. This ensures operators can reliably monitor activity while observing necessary privacy rules and regulations, while the original data can remain securely stored separately. Multiple privacy masks per stream can be applied and their size, shape, and color are customizable to suit the image being displayed.
Example of masking used to protect private information at an ATM.

Secure Network Communication

The DuraVision DX0211-IP supports HTTPS protocol to ensure authenticated access for secure communication over a network.

User Control with USB Connection

The IP decoding box is equipped with a USB downstream port so you can connect a USB-supported mouse or keyboard for controlling and navigating the user interface or web UI. To maintain access security, the USB port does not support USB memory or storage devices so you can rest assured that data is not transferred to or from the box.

Upgraded Functionality Through Firmware Updates

EIZO’s in-house development team continues to provide upgraded features and functions to its IP decoding solutions through periodic firmware updates. Innovating these updates in-house ensures EIZO provides its customers with the latest functionality and technical support with efficiency and reliability. Users can also subscribe to an optional Enterprise License which includes advanced features, such as LDAP protocol support, to meet specific environment or application requirements. Contact EIZO for more information about licensing.

Download the latest firmware

VMS Integration

Functionality with Leading VMS

EIZO works with security & surveillance industry leaders to ensure technical compatibility and functional support with various VMS (video management system).

Genetec Security Center Plugin

EIZO and Genetec came together to design a plugin that meets highly requested end user requirements for security systems worldwide. By integrating with Genetec™ Security Center video wall framework, users can easily setup and manage EIZO’s DuraVision IP decoding monitors and IP decoding box remotely. Using the Security Center interface, operators can simply drag and drop the video feed from registered cameras to the desired position and the settings will automatically be reflected on the target monitor. The number and layout of the video feeds can also be easily configured on the same screen. DuraVision IP decoding solutions can also respond to dynamic instructions from Security Center when specific events occur, such as enlarging the screen in response to an unauthorized entry.

For more information on VMS integration, click here.

Customizable Event Response

The web API supports customizable integration with the local VMS. This allows events or alarm monitoring to be communicated from the VMS to the IP decoding box, instructing it to respond to a given event. The DuraVision DX0211-IP then adjusts the display of the receiving monitor to behave accordingly.



Example of automatic screen layout adjustment in response to key card usage.

Flexible Installation

Minimal Footprint for Mounted Solutions

The DuraVision DX0211-IP can be easily mounted to the back of any VESA-supported monitor* using the VOP-01 mounting plate. The box’s slim, compact design allows it to fit perfectly behind a monitor that is mounted on the wall or ceiling, occupying minimal space in the installation area. Direct attachment to the monitor also helps to keep cabling controlled to the designated space, reducing overall clutter.

Some monitors require the VESAMP100 mounting plate in order to attach the VOP-01.

Clean Workspace for Desktop Solutions

The DuraVision DX0211-IP can be attached directly to many of EIZO’s desktop monitors using the the PCSK-03 or PCSK-03R monitor stand bracket. This provides a cleaner workspace when using a desktop solution. The attachment does not interfere with the balance of the monitor so it stays firmly in place on your desk.

Power Delivery without AC Adapter

The DuraVision DX0211-IP is equipped with a PoE+ hub so it stays powered without needing an AC adapter and cable, keeping the installation area clear. An optional AC adapter is available for environments where PoE+ is not supported.

Durability and Reliability

Fanless Solution with Low Heat Output

The DuraVision DX0211-IP provides noiseless, fanless operation while maintaining low heat output for long-term reliability. The top of the box is designed so that heat escapes efficiently, keeping it cool even during long periods of operation.



Heat escapes from the top, keeping the box cool.

24-Hour Use, 2-Year Warranty

The DuraVision DX0211-IP is built for 24-hour use and is backed by a 2-year manufacturer’s warranty for long-term reliability.

Τεχνικά Χαρακτηριστικά

Video Processor
Simultaneous Display Channels 32 (maximum)
Registrable Cameras 48 (maximum)
Protocol ONVIF Profile S, Axis VAPIX, Panasonic, RTSP
Video Codec H.26510, H.264, MJPEG
Video Input Performance (resolution / framerate) *Bitrate 4096 kbps 3840 x 2160 / 30 fps

(maximum)

4 channels: 3840 x 2160 / 20 fps

16 channels: 1920 x 1080 / 20 fps

32 channels: 1280 x 720 / 15 fps

Bitrate 8192 kbps (maximum)
Video Signals
Input Terminals IP Camera: RJ-45
Output Terminals HDMI x 2
Output Resolution 3840 x 2160 (maximum)
Framerate 60 Hz
Network
Wired LAN IEEE802.3ab (1000BASE-T)

IEEE802.3u (100BASE-TX)

IEEE802.3at Type2 (PoE+)

Transmission Rate 1000 Mbps, 100 Mbps
USB
Host USB 2.0: Type A x 1
Power
Input Voltage PoE+ Input: 42.5 V – 57 V (48 V typ.)

AC Adapter (option): DC12 V

Maximum Power Consumption PoE+ Input: 25.5 W

AC Adapter (option): 21.5 W

Features & Functions
Security HTTPS, LDAP11
Others Privacy Mask, Event Rules, Key Lock, USB Lock, Remote Controller Lock
Physical Specifications
Dimensions (W x H x D) 165 x 44.2 x 130 mm
Net Weight 770 g / 1.7 lbs
Environmental Requirements
Operating Temperature 0 – 40 °C
Operating Humidity (R.H., non condensing) 20 – 80 %
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, cTUVus, FCC-A, IC ICES-3 (A), VCCI-A, RCM, RoHS, WEEE
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables HDMI (0.5 m)
Others Setup manual
Warranty 2 years, 24-hour use
Dimension Drawing PDF
