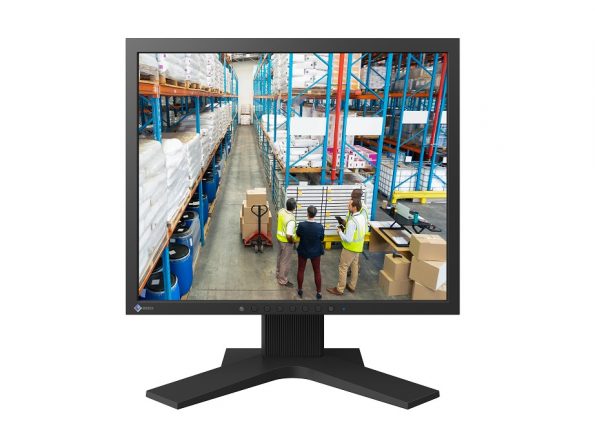

DuraVision FDS1703-A 17″

17-inch Both Analog and Digital Monitor

The DuraVision FDS1703-A is a 1280 x 1024 resolution monitor equipped with both analog and digital inputs for connecting to a wide range of security equipment.

Σύγκρινε

Analog and Digital Input

The DuraVision FDS1703-A is equipped with an HDMI connector for receiving signals from a digital source, such as an HDD recorder. It also has a composite (BNC) input for connection to video surveillance equipment, such as closed-circuit televisions (CCTV) and security cameras. The monitor supports NTSC, PAL, and SECAM signals for connecting to a variety of other surveillance equipment.

Underscan and Overscan Display Functions

Underscan is a function that shows 100% of an image and is ideal for video signals while overscan displays approximately 95% of an image, eliminating extraneous TV broadcasting data that sometimes appears at the edges of the screen.

Clear View from Below

When viewing an LCD screen from below, colors typically appear washed out. The DuraVision FDS1703-A includes an Up View function which minimizes color wash-out for maintaining a clear view. This is ideal for environments where the monitor is installed above eye level.

Flexible Screen Display

The monitor can accept a full HD (1920 x 1080) signal via HDMI and display at its native resolution of 1280 x 1024. Multiple screen setting options are available for analog or digital signals that allow operators to display images to fit to the screen, stretch to fill, or enlarge while maintaining aspect ratio.

Reduced Noise and Flicker

A 3D Y/C separation circuit is built in and separates the brightness signal from the color information. This effectively reduces color flickering and noise that is typically characteristic of analog signals.

Built-In Stereo Speakers

The DuraVision FDS1703-A comes equipped with built-in 0.5 W + 0.5 W stereo speakers for environments that require sound output from the monitor.

24-Hour Use, 2-Year Warranty

The monitor is built for 24-hour use and is backed by a 2-year manufacturer’s warranty for long-term reliability.

Ανάλυση Οθόνης

Διαγώνιος Οθόνης

Χρώμα

,

Χρόνος Απόκρισης

Τύπος Panel

Τεχνικά Χαρακτηριστικά

Model Variations FDS1703-AGY: with stand, gray

FDS1703-ABK: with stand, black

FDS1703-AFGY: without stand, gray

FDS1703-AFBK: without stand, black

Panel
Type TN
Backlight LED
Size 17″ / 43.3 cm
Native Resolution 1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V) 337.9 x 270.3 mm
Pixel Pitch 0.264 x 0.264 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 160°, 140°
Brightness (typical) 400 cd/m2
Contrast Ratio (typical) 800:1
Response Time (typical) 20 ms (black-white-black)
Video Signals
Input Terminals HDMI (HDCP1.4), BNC (Composite)
Video Input Format NTSC, PAL, SECAM
Audio
Speakers 0.5 W + 0.5 W
Input Terminals Stereo mini jack
Power
Power Requirements AC 100 – 240 V, 50 / 60 Hz
Maximum Power Consumption 26 W
Power Save Mode 2.5 W or less
Features & Functions
OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Others Color Adjustment (Brightness, Contrast, Temperature, Gamma, Saturation, Hue, Gain, Reset), Screen Size, Input Color Format, Input Range, Noize Reduction, Sharpness, Over Scan, Up View, Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), Adjustment Lock, Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 367 x 391.5 – 491.5 x 205 mm
Dimensions (Without Stand, W x H x D) 367 x 304 x 59 mm
Net Weight 5.2 kg / 11.5 lbs
Net Weight (Without Stand) 3.4 kg / 7.5 lbs
Height Adjustment Range 100 mm
Tilt 30° Up, 0° Down
Swivel 35° Right, 35° Left
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm, M4, screw depth 11.4 mm
Environmental Requirements
Operating Temperature 0 – 40 °C
Operating Humidity (R.H., non condensing) 20 – 80 %
Certifications & Standards (Please contact EIZO for the latest information.) CE, CB, cTUVus, FCC-A, CAN ICES-3 (A), VCCI-A, RCM, RoHS, WEEE
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Others User’s manual, 4 screws for mount option (FDS1703-AF), Connector Clamp
Warranty 2 years, 24-hour use
Dimension Drawing PDF
