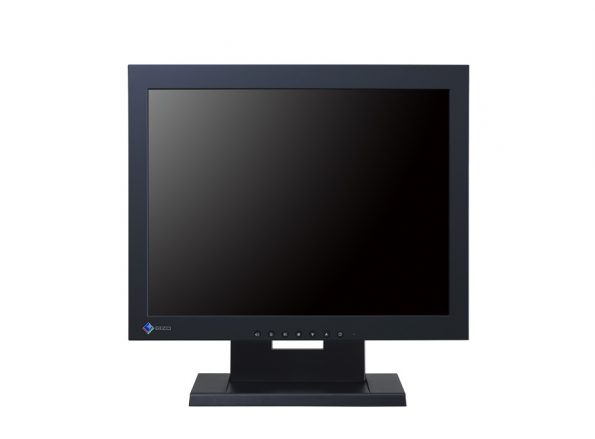

DuraVision FDX1501T-A 15″

Τιμή:

15-inch Touch LCD Monitor

Highly Durable 15″ Industrial Monitors with High Brightness and Multiple Mounting Options

Τιμή:


Flexible Installation

To meet the requirements of different industrial installations, the monitor is available in four configurations – desktop, VESA mount, panel mount, and chassis.

Durable Build

The monitor can withstand temperatures ranging from 0 – 50°C for high durability in industrial environments. In addition, the cabinet does not contain any ventilation holes, making it impervious to liquids and dust.

Touch Panel Variation

The monitor is equipped with an analog resistive touch panel that has a minimum touch life of 10 million touches. It accepts touch input from both bare and gloved hands as well as styluses. It is also more resistant to dust and water compared to other touch technologies for increased durability.

Flexible Positioning

The monitor is built to operate in both standard horizontal positions and non-standard positions such as attached to a mounting device or tilted at an extreme angle.

High Brightness for Visibility

The maximum brightness of 320 cd/m2 ensures excellent screen visibility in bright ambient environments. The brightness is adjustable to as low as 0.5 cd/m2, making it easy to view in low ambient lighting conditions.

Ανάλυση Οθόνης

Διαγώνιος Οθόνης

Τύπος Panel

Χρώμα

,

Χρόνος Απόκρισης

Τεχνικά Χαρακτηριστικά

Model Variations FDX1501T-AGY: with stand, gray

FDX1501T-ABK: with stand, black

FDX1501T-AFGY: without stand, gray

FDX1501T-AFBK: without stand, black

FDX1501T-APBK: Panel Mount, black

FDX1501T-AC: Chassis Mount

Panel
Type TN
Size 15″ / 38 cm
Native Resolution 1024 x 768 (4:3 aspect ratio)
Viewable Image Size (H x V) 304.1 x 228.0 mm
Pixel Pitch 0.297 x 0.297 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 160°, 160°
Brightness (typical) 320 cd/m2
Contrast Ratio (typical) 600:1
Response Time (typical) 8 ms (black-white-black)
Touch Panel
Type Analog resistive
Touch Points 1
Surface Treatment Anti-Glare coating
Communication Protocol USB 2.0 / RS-232C
Touch Life 10 million touches (minimum)
Compatible OS Windows 10 / 8.1 / 7 (64-bit, 32-bit), Windows Vista / XP (32-bit)
Video Signals
Input Terminals DVI-D (HDCP1.4), D-Sub mini 15 pin
Analog Scanning Frequency (H / V) 24 – 61 kHz, 55 – 76 kHz
Sync Formats Separate
USB
Upstream USB 2.0: Type-B
Audio
Speakers 0.5 W + 0.5 W (FDX1501T-A, FDX1501T-AF only)
Input Terminals Stereo mini jack (FDX1501T-A, FDX1501T-AF only)
Output Terminals Headphones (Stereo mini jack) (FDX1501T-A, FDX1501T-AF only)
Power
Power Requirements FDX1501T-A, FDX1501T-AF:AC 100 – 240 V, 50 / 60

FDX1501T-AP, FDX1501T-AC:DC 12 V

Typical Power Consumption FDX1501T-A, FDX1501T-AF:6 W
Maximum Power Consumption FDX1501T-A, FDX1501T-AF:15 W

FDX1501T-AP, FDX1501T-AC:12W

Power Save Mode FDX1501T-A, FDX1501T-AF:0.5 W or less

FDX1501T-AP, FDX1501T-AC:1.0 W or less

Features & Functions
Preset Modes User1, User2, sRGB
OSD Languages English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Others Screen Adjustment (Clock, Phase, Position, Range (Auto), Smoothing (5 stages), Color Adjustment (Brightness, Gamma, Temperature, Gain, Saturartion, Hue, Reset, Color Mode), Signal Switching, Power Indicator, Product Information (name, serial number, resolution, operating time, etc.), Reset
Physical Specifications
Dimensions (Landscape, W x H x D) 346 x 349 x 157 mm
Dimensions (Without Stand, W x H x D) 346 x 280 x 69 mm
Dimensions (Panel Mount, W x H x D) 383 x 331 x 62 mm
Dimensions (Chassis, W x H x D) 357.4 x 273.5 x 61 mm
Net Weight 5.8 kg / 12.7 lbs
Net Weight (Without Stand) 3.4 kg / 7.5 lbs
Net Weight (Panel Mount) 3.7 kg / 8.2 lbs
Net Weight (Chassis) 3.3 kg / 7.3 lbs
Height Adjustment Range
Tilt 30° Up, 0° Down
Swivel
Pivot
Hole Spacing (VESA Standard) 100×100 mm / 75×75 mm, M4, screw depth 3.0 – 10 mm
Environmental Requirements
Operating Temperature 0 – 50 °C
Operating Humidity (R.H., non condensing) 20 – 90 %
Degree of Protection FDX1501T-APBK, FDX1501T-AC: IP65 (front)
Certifications & Standards (Please contact EIZO for the latest information.) FDX1501T-A, FDX1501T-AF:

CB, CE, CTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, CCC, RCM, EAC, RoHS, WEEE, China RoHS, J-Moss Green mark Guideline

FDX1501T-AP, FDX1501T-AC:CE, EAC, RoHS, China RoHS

Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables D-Sub mini 15 pin (1.8 m)
Others FDX1501T-A: USB Type-A – USB Type-B cable (1.8m), Audio cable (2.1m), Setup manual, CD-ROM (PDF user’s manual, Touch panel driver), Clamper, Screw for clamper

FDX1501T-AF: USB Type-A – USB Type-B cable (1.8m), Audio cable (2.1m), Setup manual, CD-ROM (PDF user’s manual, Touch panel driver), VESA mounting screw x 4, Clamper, Screw for clamper, Screws for mount option

FDX1501T-AP: USB Type-A – USB Type-B cable (1.8m), CD-ROM (PDF user’s manual, Touch panel driver), VESA mounting screw x 4, Clamper, Screw for clamper, Mounting bracket

FDX1501T-AC: USB Type-A – USB Type-B cable (1.8m), CD-ROM (PDF user’s manual, Touch panel driver), VESA mounting screw x 4, Clamper, Screw for clamper

Warranty 3 years, 24-hour use
Dimension Drawing PDF
