3-inch PC-Less Decoding Monitor
PC-Less Connection to Multiple IP Cameras and Visibility-Enhancing Technology
Solutions for Every Market
EIZO’s IP decoding solutions provide high performance, long-term reliability, and flexible installation to a wide range of environments

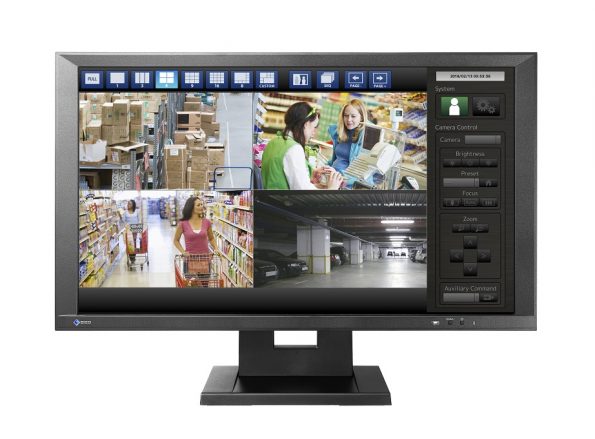

The DuraVision FDF2304W-IP connects to an IP camera or switch to immediately begin streaming video. It does not require a PC, software, or other hardware to operate, greatly simplifying installation and saving on time and labor costs. This also eliminates several potential points of failure and addresses security concerns typical of a conventional setup by heavily reducing the amount of equipment needed to manage sensitive visual data.
The DuraVision FDF2304W-IP can decode H.264 and MJPEG codecs, displaying them in real time for assessing any situation quickly. In addition, the decoding technology ensures a high fps (frames-per-second) for displayed content, even when streaming high-resolution video. For example, 16 video feeds at 640 x 480 resolution displayed simultaneously on a single monitor achieve a consistent 20 fps.
Examples of framerate at different resolution and screen combinations.
Secure Investment with Support for Over 250 Cameras
The DuraVision FDF4627W-IP supports cameras with ONVIF Profile S, Axis VAPIX, and Panasonic protocols for flexible installation and ensured interoperability with a wide range of products. In addition, a direct connection through RTSP is available (Direct URI).
Register Cameras with the Intuitive Web UI
Up to 16 different IP cameras can be registered to the IP decoding monitor through the intuitive web UI. Cameras can be discovered automatically or registered manually, and individual settings are easily managed from a remote location.
Live Streaming Directly from IP Cameras
Connecting IP cameras directly to the DuraVision FDF2304W-IP allows for the live streaming of video without a decentralized recording solution, such as edge recording or cloud archiving. This provides a solution for scenarios which require live streaming without the storage of recorded images.
Features for Ease-of-Use
Adjustable Screen Layout
With the user-friendly web UI, you can easily adjust the layout of the video streams with 6 default options, displaying up to 16 screens on the monitor. In addition, flexible arrangement of the screens in a custom layout allows you to fulfill individual viewing needs. With custom layout you can merge individual windows to focus on specific areas, or split them to see more on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.
Choose from 6 default layouts.
Upgraded Functionality with Firmware Updates
EIZO’s in-house development team continues to provide upgraded features and functions to its IP decoding solutions through periodic firmware updates. Innovating these updates in-house ensures EIZO provides its customers with the latest functionality and technical support with efficiency and reliability.
Functionality with Leading VMS
EIZO works with security & surveillance industry leaders to ensure technical compatibility and functional support with various VMS (video management system).
Genetec Security Center Plugin
EIZO and Genetec came together to design a plugin that meets highly requested end user requirements for security systems worldwide. By integrating with Genetec™ Security Center video wall framework, users can easily setup and manage EIZO’s DuraVision IP decoding monitors and IP decoding box remotely. Using the Security Center interface, operators can simply drag and drop the video feed from registered cameras to the desired position and the settings will automatically be reflected on the target monitor. The number and layout of the video feeds can also be easily configured on the same screen. DuraVision IP decoding solutions can also respond to dynamic instructions from Security Center when specific events occur, such as enlarging the screen in response to a unauthorized entry.
For more information on VMS integration, click here.
For Genetec Security Center VMS compatibility information, click here.
Customizable Event Response
The web API supports customizable integration with the local VMS. This allows events or alarm monitoring to be communicated from the VMS to the IP decoding monitor, instructing it to respond to a given event. The DuraVision FDF2304W-IP then adjusts the layout or settings accordingly.
Example of automatic screen layout adjustment in response to key card usage.
Visibility Optimizer for Clear Images
EIZO’s unique technology called Visibility Optimizer includes a number of functions for improving the clarity of images in security & surveillance environments. Individually optimize these settings for up to 4 connected cameras in any layout.
Low-Light Correction detects areas of the screen that are dark and difficult to see and adjusts the brightness of each pixel. This reproduces highly visible images with a realistic sense of depth by brightening dark areas while keeping lighter areas from becoming washed out.
Outline Enhancer analyzes the displayed content and ensures that noise is not accentuated while correcting blurred areas for a sharper, clearer image. For images with a great deal of depth, it sharpens the foreground more strongly to maintain a real-world sense of focus.
The monitor includes settings to reduce the amount of block noise that occurs due to video compression.
Day and Night Preset Modes
Day and Night preset modes are optimized for displaying images under different environmental conditions throughout the day. You can easily switch between modes with the included remote control.
Clear View Across the Screen
The monitor is equipped with a non-glare IPS panel with wide viewing angles for minimal color shift and contrast change, even when viewed off-center. This ensures accurate color reproduction and clear visibility across the screen.
The DuraVision FDF4627W-IP can be mounted on a wall or ceiling using VESA-supported fixtures for convenient installation in any environment.
Built-In Power Supply
The AC power supply is built-in so you can easily connect with a single power cord. This helps to keep the installation area clear of additional clutter.
The monitor is equipped with a safety lock that can lock it in place on a desk or other surface, preventing the monitor from being knocked over or removed.
Durability and Reliability
24-Hour Use, 2-Year Warranty
The monitor is built for 24-hour use and is backed by a two-year manufacturer’s warranty for long-term reliability.
|Model Variations||With Stand|
|Size||23.0″ / 58 cm|
|Native Resolution||1920 x 1080 (16:9 aspect ratio)|
|Viewable Image Size (H x V)||509.1 x 286.4 mm|
|Pixel Pitch||0.265 x 0.265 mm|
|Grayscale Tones||256 tones (a palette of 1021 tones)|
|Display Colors||16.7 million|
|Viewing Angles (H / V, typical)||178°, 178°|
|Brightness (typical)||300 cd/m2|
|Contrast Ratio (typical)||1000:1|
|Response Time (typical)||8 ms (Gray to gray)|
|Input Terminals||IP Camera: RJ-45
PC : HDMI (HDCP1.4)
|Digital Scanning Frequency (H / V)||HDMI: 31 – 68 kHz / 49 – 61 Hz|
|Wired LAN||IEEE802.3ab(1000BASE-T) / IEEE802.3u(100BASE-TX)|
|Host||USB 2.0: Type-A x 2|
|Power Requirements||AC 100 – 120 V/ AC 200 – 240 V, 50 / 60 Hz|
|Maximum Power Consumption||61 W|
|Standby Mode||3.0 W or less (Quick start OFF) / 33.0 W or less (Quick start ON)|
|Features & Functions|
|Preset Modes||Day, Night|
|OSD Languages||English, German, Japanese|
|Others||Brightness, Visibility Optimizer(Low-Light Correction, Outline Enhancer, Noise Reduction), Camera Control(Brightness, Preset, Focus, Zoom, Pan, Tilt), Date and Time, Network Setting, Display Position(1/4/9/16/8), Camera(Auto Discovery, Manual Registration), HDMI Color Space, Key Lock, USB lock, Remote lock, Power Indicator, Reset|
|Dimensions (Landscape, W x H x D)||563.5 x 411.5 x 157 mm|
|Dimensions (Without Stand, W x H x D)||563.5 x 325 x 63 mm|
|Net Weight||7.2 kg / 15.9 lbs|
|Net Weight (Without Stand)||4.8 kg / 10.6 lbs|
|Tilt||30° Up, 0° Down|
|Hole Spacing (VESA Standard)||100 x 100 mm|
|Operating Temperature||0 – 35 °C|
|Operating Humidity (R.H., non condensing)||20 – 80 %|
|Certifications & Standards (Please contact EIZO for the latest information.)||CB, CE, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, CCC, EAC, RCM, RoHS, WEEE|
|Supplied Accessories (May vary by country. Please contact EIZO for details.)|
|Signal Cables||HDMI (2 m)|
|Others||AC Power cord (2m), Remote control with battery, User’s manual|
