FDF2711W-IP 27″

Τιμή:

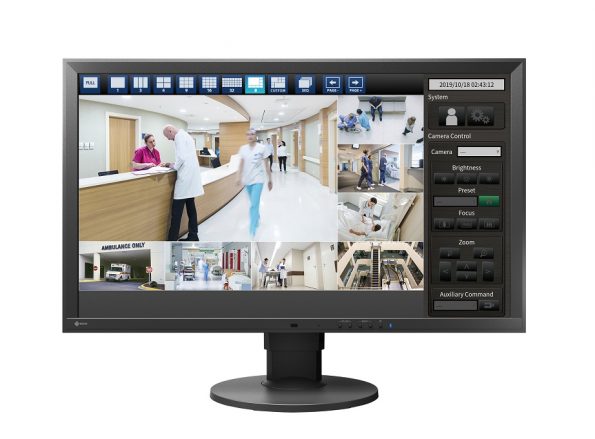

2nd Gen 27-inch PC-less Monitor

The DuraVision FDF2711W-IP uses EIZO’s 2nd generation decoding platform to stream video directly from multiple IP cameras without a PC or other hardware.

Τιμή:


Solutions for Every Market

EIZO’s IP decoding solutions provide high performance, long-term reliability, and flexible installation to a wide range of environments.

Integrated Solution

The DuraVision FDF2711W-IP connects to an IP camera or switch to immediately begin streaming video. It does not require a PC, software, or other hardware to operate, greatly simplifying installation and saving on time and labor costs. This also eliminates several potential points of failure and addresses security concerns typical of a conventional setup by heavily reducing the amount of equipment needed to manage sensitive visual data.

Powerful Performance

Video Decoding

The DuraVision FDF2711W-IP can decode H.265 (HEVC), as well as H.264 and MJPEG codecs, displaying them in real time for assessing any situation quickly. In addition, the decoding technology ensures a high fps (frames-per-second) for displayed content, even when streaming high-resolution video. For example, 16 Full HD (1920 x 1080) video feeds displayed simultaneously on a single monitor achieve a consistent 20 fps.

Examples of framerate at different resolution and screen combinations.

Multi-Monitor Viewing

The DuraVision FDF2711W-IP is equipped with an HDMI output that supports connection to a second monitor with Full HD resolution (1920 x 1080). This provides a multi-monitor environment that allows users to flexibly manage video from the same network source across two screens.

Secure Investment with Support for Over 250 Cameras

The DuraVision FDF2711W-IP supports cameras with ONVIF Profile S, Axis VAPIX, and Panasonic protocols for flexible installation and ensured interoperability with a wide range of products. In addition, a direct connection through RTSP is available (Direct URI).

Camera compatibility details

Register up to 48 IP Cameras

Up to 48 different IP cameras, including 4K cameras, can be registered to the IP decoding monitor through the intuitive web UI. Cameras can be discovered automatically or registered manually, and individual settings are easily managed from a central location.

Live Streaming Directly from IP Cameras

Connecting IP cameras directly to the DuraVision FDF2711W-IP allows for the live streaming of video without a decentralized recording solution, such as edge recording or cloud archiving. This provides a solution for scenarios which require live streaming without the storage of recorded images.

Features for Ease-of-Use

Adjustable Screen Layout

With the user-friendly web UI, you can easily adjust the layout of the video streams with 7 default options, displaying up to 32 screens on the monitor. In addition, flexible arrangement of the screens in a custom layout allows you to fulfill individual viewing needs. With custom layout you can merge individual windows to focus on specific areas, or split them to see more on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.

Choose from 7 default layouts.

Sequential Screen Lock

When using the sequential image display setting, users can select an image to remain static, even through page changes. This allows operators to keep eyes on a single focus point while maintaining a coverage in several other areas.

Privacy Mask and Virtual Line

The DuraVision FDF2711W-IP allows users to assign static privacy masks to hide private information or virtual lines to track barriers and other areas of concern on the live video stream. Up to 10 objects can be applied at once and they do not alter the source stream. This ensures operators can reliably monitor activity while observing necessary privacy rules and regulations, with the original data securely stored separately.

Example of privacy mask used to protect private information at an ATM.

Intuitive Camera PTZ Control

Operators can easily control individual camera PTZ settings using the buttons displayed over the selected video stream. This intuitive interface streamlines operation for more efficient viewing.

Secure Network Communication

The DuraVision FDF2711W-IP supports HTTPS protocol to ensure authenticated access for secure communication over a network.

Integration with Security Systems

Customizable Event Response

The web API supports customizable integration with local security systems and devices to allow communication with and response to alerts over the network. For example, when an alert is sent to the IP monitor or box from an IP camera or VMS (video management system), it response with an action such as layout adjustment, message display, or a multitude of other capabilties. This provides the flexibility to work with a range of notification systems from IP cameras, VMS, access control systems, and other devices and applications which support alert functions.

Issue Commands to Network Devices

Through the event notification settings, users can manually send HTTP commands directly to the IP monitor or network device from the live view screen. For example, activate a door lock or turn off the alert and return to original viewing state.

Functionality with Leading VMS

EIZO works with security & surveillance industry leaders to ensure technical compatibility and functional support with various VMS (video management system).

Genetec Security Center Plugin

EIZO and Genetec came together to design a plugin that meets highly requested end user requirements for security systems worldwide. By integrating with Genetec™ Security Center video wall framework, users can easily setup and manage EIZO’s DuraVision IP decoding monitors and IP decoding box remotely. Using the Security Center interface, operators can simply drag and drop the video feed from registered cameras to the desired position and the settings will automatically be reflected on the target monitor. The number and layout of the video feeds can also be easily configured on the same screen. DuraVision IP decoding solutions can also respond to dynamic instructions from Security Center when specific events occur, such as enlarging the screen in response to an unauthorized entry.

Camera position and video layout managed from Security Center.

For more information on VMS integration, click here.

Upgraded Functionality

Firmware Updates

EIZO’s in-house development team continues to provide upgraded features and functions to its IP decoding solutions through periodic firmware updates. Innovating these updates in-house ensures EIZO provides its customers with the latest functionality and technical support with efficiency and reliability.
Download the latest firmware

Enterprise License

Users can subscribe to an optional Enterprise License which includes advanced features, such as those listed below, to meet specific environment or application requirements. Contact EIZO for more information about licensing.

Contact EIZO

View Remote Monitor Live Streams via the Web UI

Live video streams displayed on remotely located monitors can be viewed in real-time via the web UI so operators can check display status without needing to visit the installation site.

Live Image Menu Customization

Customize the live view menu with preset icons of your choice using the Icon arranger function. You can also saved up to seven custom layout presets and add it to the live view menu.

Access Control and Encryption for Increased Security

LDAP protocol support is available with the Enterprise License for increased access control security. AXIS SRTP (Secure Real-Time Protocol) is also available, enabling the IP monitor or box to receive encrypted video streams from AXIS cameras.

Flexible Installation

VESA-Supported Solution

The DuraVision FDF2711W-IP can be mounted on a wall or ceiling using VESA-supported fixtures for convenient installation in any environment.

Built-In Power Supply

The AC power supply is built-in so you can easily connect with a single power cord. This helps to keep the installation area clear of additional clutter.

Safety Lock

The monitor is equipped with a safety lock that can lock it in place on a desk or other surface, preventing the monitor from being knocked over or removed.

Durability and Reliability

24-Hour Use, 2-Year Warranty

The monitor is built for 24-hour use and is backed by a two-year manufacturer’s warranty for long-term reliability.

Ανάλυση Οθόνης

Διαγώνιος Οθόνης

Τύπος Panel

Χρώμα

Χρόνος Απόκρισης

Τεχνικά Χαρακτηριστικά



Model Variations FDF2711W-IP-BK: with stand, black
Panel
Type VA
Backlight LED
Size 27″ / 68.6 cm
Native Resolution 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V) 597.6 x 336.2 mm
Pixel Pitch 0.311 x 0.311 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 3000:1
Response Time (typical) 12 ms (black-white-black)
Video Processor
Simultaneous Display Channels 32 (maximum)
Registrable Cameras 48 (maximum)
Protocol ONVIF Profile S, Axis VAPIX, Panasonic, RTSP
Video Codec H.26510, H.264, MJPEG
Video Input Performance (resolution / framerate) *Bitrate 4096 kbps 3840 x 2160 / 30 fps

(maximum)

4 channels: 3840 x 2160 / 20 fps

16 channels: 1920 x 1080 / 20 fps

32 channels: 1280 x 720 / 15 fps

Bitrate 8192 kbps (maximum)
Video Signals
Input Terminals IP Camera: RJ-45
Output Terminals HDMI x 1
Output Resolution 1920 x 1080 (Fixed)
Framerate 60 Hz
Network
Wired LAN IEEE802.3ab (1000BASE-T)

IEEE802.3u (100BASE-TX)

Transmission Rate 1000 Mbps, 100 Mbps
USB
Host USB 2.0: Type A x 2
Power
Power Requirements AC 100 – 240 V, 50 / 60 Hz
Maximum Power Consumption 59 W
Features & Functions
Security HTTPS, LDAP11
OSD Languages English, German, Japanese
Others Privacy Mask, Event Rules, Key Lock, USB Lock, Remote Controller Lock
Physical Specifications
Dimensions (Landscape, W x H x D) 640 x 404.5 – 554.5 x 245 mm
Dimensions (Without Stand, W x H x D) 640 x 379 x 65 mm
Net Weight 9.9 kg / 21.8 lbs
Net Weight (Without Stand) 7.1 kg / 15.7 lbs
Height Adjustment Range 150 mm
Tilt 35° Up, 5° Down
Swivel 344°
Pivot 90°
Hole Spacing (VESA Standard) 100 x 100 mm, M4, screw depth 11 mm
Environmental Requirements
Operating Temperature 0 – 40 °C
Operating Humidity (R.H., non condensing) 20 – 80 %
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, cTUVus, FCC-A, CAN ICES-3 (A), TUV/S, PSE, VCCI-A, EAC, RCM, RoHS, WEEE
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Others Setup manual
Warranty 2 years, 24-hour use
Dimension Drawing PDF
