The SCD 19102 produces color and gray scale images for the accurate, high-speed presentation of motion studies and dynamic images in endoscopy, surgery, cardiac imaging, and ultrasound. Like all displays from EIZO, the device is pre-calibrated in the factory. The five integrated look-up tables (LUTs) loaded with practice-oriented settings of high image quality are stored in the display enabling the use of standard graphics boards. The display can be set and re-calibrated in the field in accordance with the CIE or DICOM (Digital Imaging and Communications in Medicine) standard.

• 19-inch LCD module with 1 megapixel resolution offering a maximum brightness of 330 cd/m²
• Fully automated luminance stability through the Integrated Stability System (ISS)
• CIE/DICOM compliant gray scale response built into the display
• Adjustable color point for optimized display matching
• Fully supported by the RadiCS quality assurance tool
• 5 user defined 10 bit look up tables adaptable to diverse reading and viewing environments
• Gamma response calibrated during manufacturing to provide consistent image quality from one display to the next
• State of the art video signal rendering; video standards: PAL, NTSC
• Force Mode for tailoring the display to even the most specialized timing requirements

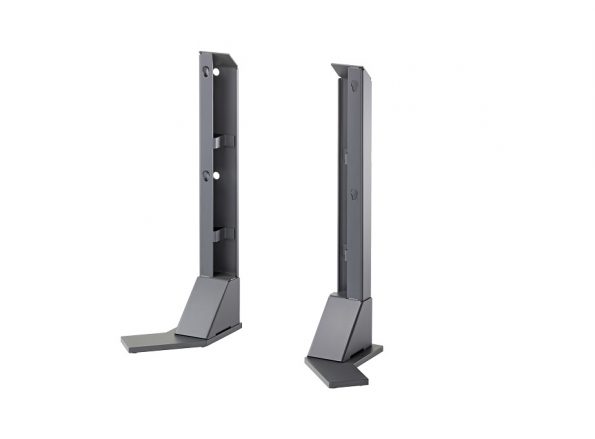

Stand for EX3140 and EX3241

Stand for EX3220-3D and EX3220

The DVI Transmission Link TDL3600 and TDL2300 enable data transmission of high-quality video data of up to 36 or 23 meters with no quality loss. Transmitting the data over an Ethernet cable allows robust handling and simple setup, and the cables can be easily run through small conduits and holes.

This 49” widescreen monitor is ideally suited for viewing medical images under OR conditions. Numerous input and output signals, image combination capabilities, and gamma models pre-calibrated at the factory enable its use within the widest range of applications. With its fan-free design and water-tight, easy to clean front, the monitor is perfectly suited for sterile hospital environments.

• Five factory-set look up tables according to DICOM and Gamma 2.2 for optimal image reproduction
• Fast adaptation to various environments and procedures
• Numerous video inputs and outputs for increased connectivity
• Flexible image arrangement thanks to the Picture-in-Picture (PiP) and Picture-at-Picture (PaP) functions
• Fully automated brightness stability using ISS (Integrated Stability System)

The large 55-inch screen with 4K UHD resolution is ideal for displaying medical images for angiography, cardiology or endoscopy in medical environments and can be mounted on a wall or ceiling mount. The monitor’s redundant components and LED backlight make it ideal for long-term stable and reliable use in the operating room.

• Wide viewing angle with IPS LCD technology.
• Quick on-site adjustment to different image types and prevailing ambient brightness.
• Grayscale tones adjusted at the factory to meet DICOM Part 14 standard for optimum viewing of medical DICOM images.
• Redundant components architecture for a high degree of operational reliability.
• Homogeneous brightness uniformity across the entire screen.

The TID0102 splits the DVI signal from the LMM0804 into two configurable signals. The TID0102-HDL provides additional HDL transmission technology to enable video transmission via traditional CAT cables at a distance of up to 70 m.

• TID0102-DVI or TID0102-HDL model available
• Flexible, configurable video output
• Variable EDID (Extended Display Identification Data) handling
• Automatic monitor detection at output

A 31.5-inch wide screen surgical monitor with full HD display that faithfully reproduces surgical images.

• 31.5-inch LCD monitor with full HD resolution (1920 x 1080 pixels)
• Powerful LED backlight with 650 cd/m² luminance for optimal viewing in bright operating rooms
• High IP rating and fanless design ideal for maintaining a sterilized OR environment
• Sleek design with fully-flat protective glass and rounded corners for comfort and safety in the operating room

Ultra-High Definition camera system with fully integrated triaxial mount for capturing surgical proceedings.

• 4K ultra high definition resolution at 60p
• 30x optical zoom for clear, close-up images
• Integrated triaxial camera mount with pan, tilt, and roll
• Intuitive camera movement for simple operation
• Single cable connection between camera head and CCU
• Smooth positioning even under high zoom
• Attach to ceiling arms for obstruction-free video

A 26-inch wide screen surgical monitor with full HD display and three screen support.

• 26-inch LCD monitor with full HD resolution (1920 x 1080 pixels)
• Powerful LED backlight with 700 cd/m² luminance for optimal viewing in bright operating rooms
• Smart Resolution with Sparse Coding (S.R.S.C.) for high definition images
• Up to three video sources can be displayed simultaneously
• High IP rating and fanless design ideal for maintaining a sterilized OR environment

The constantly growing number of medical devices and equipment used in the OR is a major challenge for OR and nursing staff. This is because, even in stressful situations, they have to be able to operate the equipment without making an error. Different user interfaces and systems that are not compatible with one another sometimes force the OR team into using awkward workflows.

With CuratOR Caliop, EIZO has developed an integration software that centralizes key OR-workflows on a single platform.

• Simple and intuitive menu navigation
• Manufacturer-independent integration
• Designed for use with mouse and touchscreen as well as remotely (foot switch / endoscope head buttons)
• Only one user interface is necessary
• Modules can be added on and additional elements can be purchased later
• Saves time and money
• Uncomplicated administration

The 58 inch viewing area of LS580W enables a new dimension in medical imaging allowing high flexibility in arranging different screen layouts. Important pictures can be scaled to the desired size, less important information can be moved out of the focus. The LS580W supports life time luminance stability. Its tone curves match DICOM/CIE recommendations. The monitor can be mounted to ceiling suspensions and is ideal for operating rooms where multiple medical images need to be displayed simultaneously.

• 58-inch LCD module with 8 megapixel (4K ultra HD) resolution.
• Environmentally-friendly LED backlight offering a maximum brightness of 700 cd/m².
• Redundant components architecture for a high degree of operational reliability.
• Factory-adjusted grayscale tones to meet DICOM Part 14 standard for optimum display of medical DICOM images.
• 5 user-selectable 11-bit look-up tables enable accurate viewing of any type of medical image.
• Homogeneous brightness uniformity across the entire screen.
