Stand for EX3220-3D and EX3220

A 26-inch wide screen surgical monitor with full HD display that faithfully reproduces surgical images.

• 26-inch LCD monitor with full HD resolution (1920 x 1080 pixels)
• Powerful LED backlight with 700 cd/m² luminance for optimal viewing in bright operating rooms

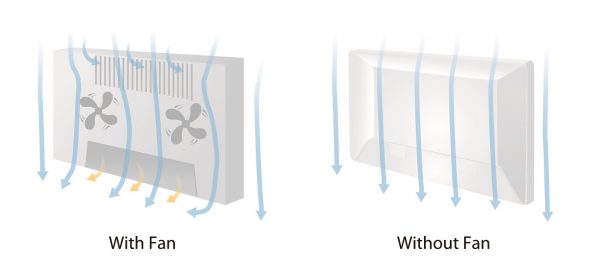

• High IP rating and fanless design ideal for maintaining a sterilized OR environment

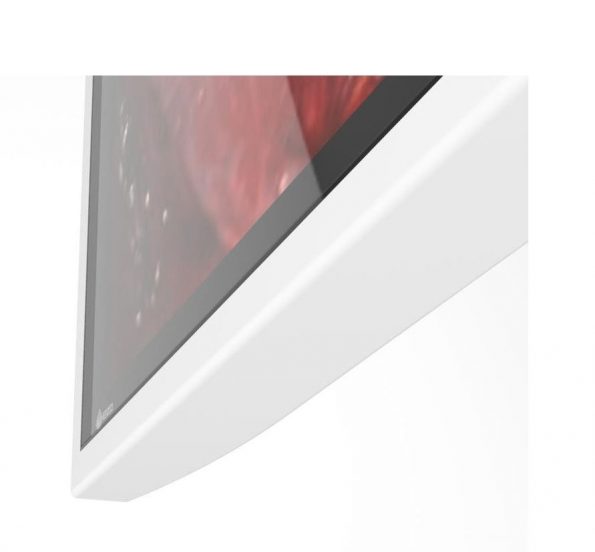

• Sleek design with fully-flat protective panel and rounded corners for comfort and safety in the operating room

The SCD 19102 produces color and gray scale images for the accurate, high-speed presentation of motion studies and dynamic images in endoscopy, surgery, cardiac imaging, and ultrasound. Like all displays from EIZO, the device is pre-calibrated in the factory. The five integrated look-up tables (LUTs) loaded with practice-oriented settings of high image quality are stored in the display enabling the use of standard graphics boards. The display can be set and re-calibrated in the field in accordance with the CIE or DICOM (Digital Imaging and Communications in Medicine) standard.

• 19-inch LCD module with 1 megapixel resolution offering a maximum brightness of 330 cd/m²
• Fully automated luminance stability through the Integrated Stability System (ISS)
• CIE/DICOM compliant gray scale response built into the display
• Adjustable color point for optimized display matching
• Fully supported by the RadiCS quality assurance tool
• 5 user defined 10 bit look up tables adaptable to diverse reading and viewing environments
• Gamma response calibrated during manufacturing to provide consistent image quality from one display to the next
• State of the art video signal rendering; video standards: PAL, NTSC
• Force Mode for tailoring the display to even the most specialized timing requirements

This 49” widescreen monitor is ideally suited for viewing medical images under OR conditions. Numerous input and output signals, image combination capabilities, and gamma models pre-calibrated at the factory enable its use within the widest range of applications. With its fan-free design and water-tight, easy to clean front, the monitor is perfectly suited for sterile hospital environments.

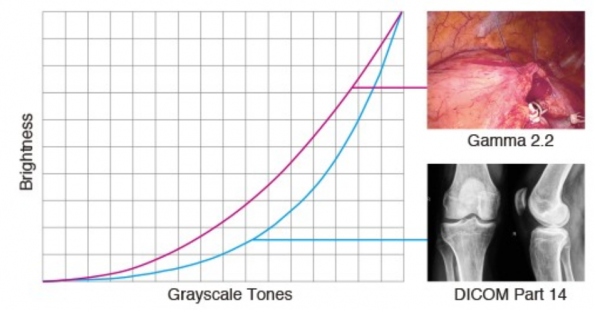

• Five factory-set look up tables according to DICOM and Gamma 2.2 for optimal image reproduction
• Fast adaptation to various environments and procedures
• Numerous video inputs and outputs for increased connectivity
• Flexible image arrangement thanks to the Picture-in-Picture (PiP) and Picture-at-Picture (PaP) functions

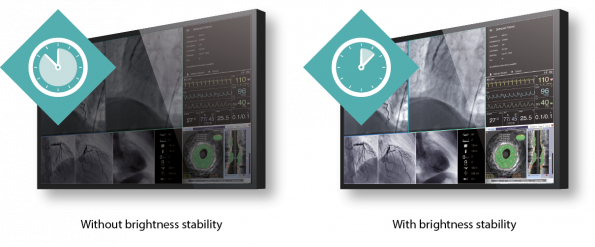

• Fully automated brightness stability using ISS (Integrated Stability System)

Ultra-High Definition camera system with fully integrated triaxial mount for capturing surgical proceedings.

• 4K ultra high definition resolution at 60p
• 30x optical zoom for clear, close-up images
• Integrated triaxial camera mount with pan, tilt, and roll
• Intuitive camera movement for simple operation
• Single cable connection between camera head and CCU
• Smooth positioning even under high zoom

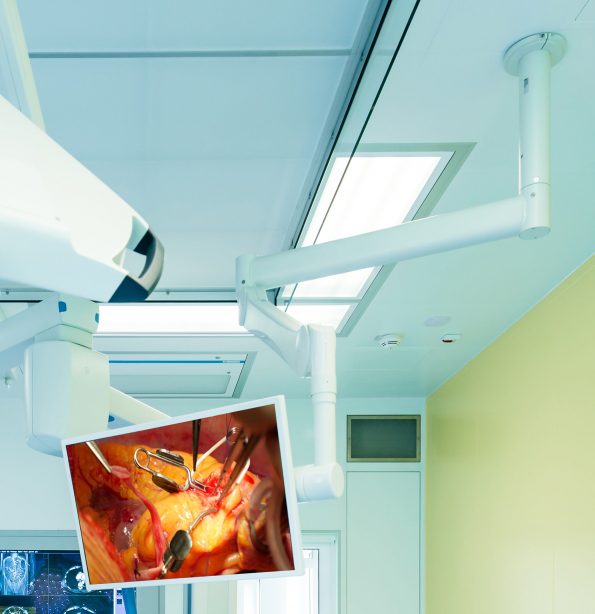

• Attach to ceiling arms for obstruction-free video

The TID0102 splits the DVI signal from the LMM0804 into two configurable signals. The TID0102-HDL provides additional HDL transmission technology to enable video transmission via traditional CAT cables at a distance of up to 70 m.

• TID0102-DVI or TID0102-HDL model available
• Flexible, configurable video output
• Variable EDID (Extended Display Identification Data) handling
• Automatic monitor detection at output

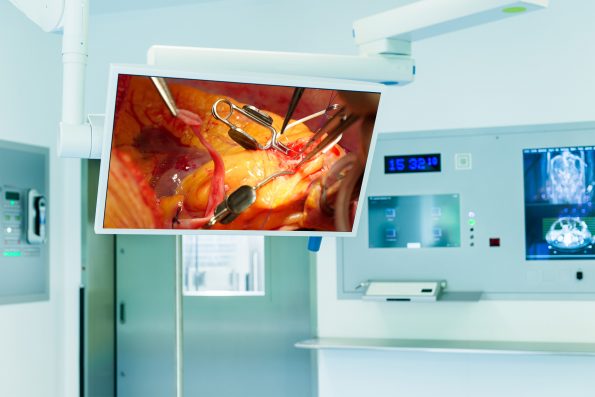

The 58 inch viewing area of LS580W enables a new dimension in medical imaging allowing high flexibility in arranging different screen layouts. Important pictures can be scaled to the desired size, less important information can be moved out of the focus. The LS580W supports life time luminance stability. Its tone curves match DICOM/CIE recommendations. The monitor can be mounted to ceiling suspensions and is ideal for operating rooms where multiple medical images need to be displayed simultaneously.

• 58-inch LCD module with 8 megapixel (4K ultra HD) resolution.
• Environmentally-friendly LED backlight offering a maximum brightness of 700 cd/m².
• Redundant components architecture for a high degree of operational reliability.
• Factory-adjusted grayscale tones to meet DICOM Part 14 standard for optimum display of medical DICOM images.
• 5 user-selectable 11-bit look-up tables enable accurate viewing of any type of medical image.
• Homogeneous brightness uniformity across the entire screen.

Faithfully reproduce stereoscopic images with this 31.5-inch widescreen 3D surgical monitor.

• 31.5-inch LCD monitor with full HD resolution (1920 x 1080 pixels)
• Powerful LED backlight with 650 cd/m² luminance for optimal viewing in bright operating rooms
• High IP rating and fanless design ideal for maintaining a sterilized OR environment
• Optical bonding for reduced reflections, high durability and condensation prevention
• Battery-free, fogless glasses for clearly and comfortably viewing 3D images
• Sleek design with fully-flat protective glass and rounded corners for comfort and safety in the operating room

The Large Monitor Manager LMM0804 enables digital and analog images from various sources to be arranged flexibly on large-format or multiple monitors. The LMM0804 has been designed for use in operating rooms, where an extremely flexible image display is required during surgery. At the same time, the image content for each individual unit can be defined separately.

• Small and compact size allows easy installation in existing systems.
• Up to 8 signal sources can be displayed simultaneously on a maximum of 5 connected monitors.
• The monitors can be connected over a distance of up to 36 m.
• Image is available within 4 secondes after system reboot.
• Maximum image latency of one frame (input to output) provides almost real-time image).

With TIP0210-DVI, image and video data, as well as control signals, can be transmitted with zero latency or loss in a 10 Gbit network. As a result, a flexible video routing can be realized using standardized, forwardlooking network technology.

• Uncompressed, loss-free data transmission of 10 Gbit/s
• Transmission with zero latency, for better hand-eye coordination
• One device per software can be used as a decoder and encoder
• Up to two video links per device can be processed
• Multiple views on a monitor possible through one signal
• Passive cooling

A 32-inch widescreen surgical monitor with 4K UHD (3840 x 2160 pixels) resolution and high brightness.

Smart Resolution with Sparse Coding (S.R.S.C.) for high definition images
DisplayPort 1.2, 12G-SDI and HDMI for easy connection
12G-SDI (BNC) for long-distance connectivity
Optical bonding for reduced reflections, high durability and condensation prevention
High IP rating for maintaining a sterilized OR environment
