Ultra-High Definition camera system with fully integrated triaxial mount for capturing surgical proceedings.

• 4K ultra high definition resolution at 60p
• 30x optical zoom for clear, close-up images
• Integrated triaxial camera mount with pan, tilt, and roll
• Intuitive camera movement for simple operation
• Single cable connection between camera head and CCU
• Smooth positioning even under high zoom
• Attach to ceiling arms for obstruction-free video

A 26-inch wide screen surgical monitor with full HD display and three screen support.

• 26-inch LCD monitor with full HD resolution (1920 x 1080 pixels)
• Powerful LED backlight with 700 cd/m² luminance for optimal viewing in bright operating rooms
• Smart Resolution with Sparse Coding (S.R.S.C.) for high definition images
• Up to three video sources can be displayed simultaneously
• High IP rating and fanless design ideal for maintaining a sterilized OR environment

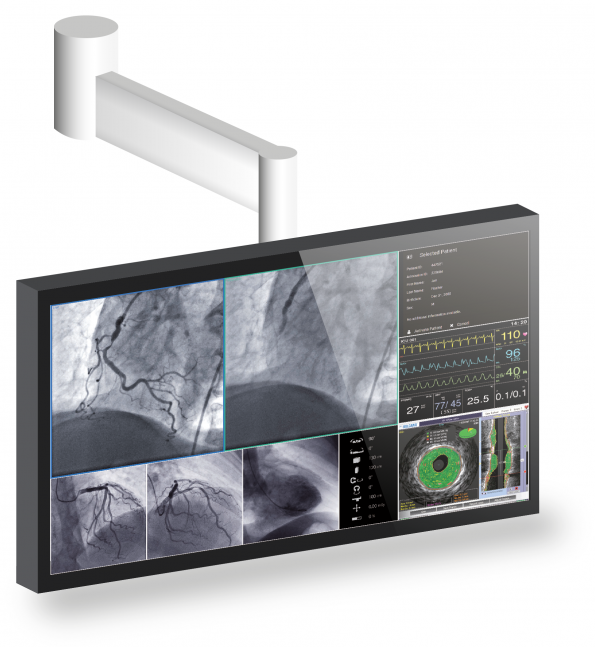

The large 55-inch screen with 4K UHD resolution is ideal for displaying medical images for angiography, cardiology or endoscopy in medical environments and can be mounted on a wall or ceiling mount. The monitor’s redundant components and LED backlight make it ideal for long-term stable and reliable use in the operating room.

• Wide viewing angle with IPS LCD technology.
• Quick on-site adjustment to different image types and prevailing ambient brightness.
• Grayscale tones adjusted at the factory to meet DICOM Part 14 standard for optimum viewing of medical DICOM images.
• Redundant components architecture for a high degree of operational reliability.
• Homogeneous brightness uniformity across the entire screen.

The Large Monitor Manager LMM0804 enables digital and analog images from various sources to be arranged flexibly on large-format or multiple monitors. The LMM0804 has been designed for use in operating rooms, where an extremely flexible image display is required during surgery. At the same time, the image content for each individual unit can be defined separately.

• Small and compact size allows easy installation in existing systems.
• Up to 8 signal sources can be displayed simultaneously on a maximum of 5 connected monitors.
• The monitors can be connected over a distance of up to 36 m.
• Image is available within 4 secondes after system reboot.
• Maximum image latency of one frame (input to output) provides almost real-time image).

The TID0102 splits the DVI signal from the LMM0804 into two configurable signals. The TID0102-HDL provides additional HDL transmission technology to enable video transmission via traditional CAT cables at a distance of up to 70 m.

• TID0102-DVI or TID0102-HDL model available
• Flexible, configurable video output
• Variable EDID (Extended Display Identification Data) handling
• Automatic monitor detection at output

By utilizing PDS0800-HD, signals coming from LMM56800 or LMM0802 are repeated and doubled to connect two 8 megapixel monitors. The HD output generates a downscaled representation of the content displayed on the large screen.

This Full HD widescreen monitor is ideally suited for viewing images in surgical environments. With its modular design, the EX271W is streamlined as a future-safe platform for evolving environments and further integration into a wider system.

• 27-inch LCD module with 1080p (Full HD) resolution (1920 x 1080 pixels).
• Powerful LED backlight with over 500 cd/m² luminance for an optimal presentation of critical images.
• 5 factory calibrated look-up tables for quick and easy adaptation to diverse application and viewing environments.
• Modular concept for targeted integration into current and future systems.
• Sleek, encapsulated design with laminated safety glass and an unsurpassed IP rating ideally suited to the OR environment.

A 31.5-inch wide screen surgical monitor with full HD display that faithfully reproduces surgical images.

• 31.5-inch LCD monitor with full HD resolution (1920 x 1080 pixels)
• Powerful LED backlight with 650 cd/m² luminance for optimal viewing in bright operating rooms
• High IP rating and fanless design ideal for maintaining a sterilized OR environment
• Sleek design with fully-flat protective glass and rounded corners for comfort and safety in the operating room

The LMM0802 is a Large Monitor Manager for 2, 4 and 8 megapixel monitors. It gathers various video inputs and display them on the large screen. Different layouts can be arranged according to user preferences and working situation. This simplifies the surgeon’s individual workflow.

• Small dimensions allow easy installation in existing systems.
• Single and Dual Workspace supported.
• Video signal is valid at the output within 4 seconds after switching on.
• Long product life cycle by using ling term available parts.
• Maximum image latency of one frame (input to output).
• Switch time between layouts sets less than 0.5 second with flicker-free picture.
• Scaler output allows distribution of arranged image to HD monitor or recording system.

The SCD 19102 produces color and gray scale images for the accurate, high-speed presentation of motion studies and dynamic images in endoscopy, surgery, cardiac imaging, and ultrasound. Like all displays from EIZO, the device is pre-calibrated in the factory. The five integrated look-up tables (LUTs) loaded with practice-oriented settings of high image quality are stored in the display enabling the use of standard graphics boards. The display can be set and re-calibrated in the field in accordance with the CIE or DICOM (Digital Imaging and Communications in Medicine) standard.

• 19-inch LCD module with 1 megapixel resolution offering a maximum brightness of 330 cd/m²
• Fully automated luminance stability through the Integrated Stability System (ISS)
• CIE/DICOM compliant gray scale response built into the display
• Adjustable color point for optimized display matching
• Fully supported by the RadiCS quality assurance tool
• 5 user defined 10 bit look up tables adaptable to diverse reading and viewing environments
• Gamma response calibrated during manufacturing to provide consistent image quality from one display to the next
• State of the art video signal rendering; video standards: PAL, NTSC
• Force Mode for tailoring the display to even the most specialized timing requirements
