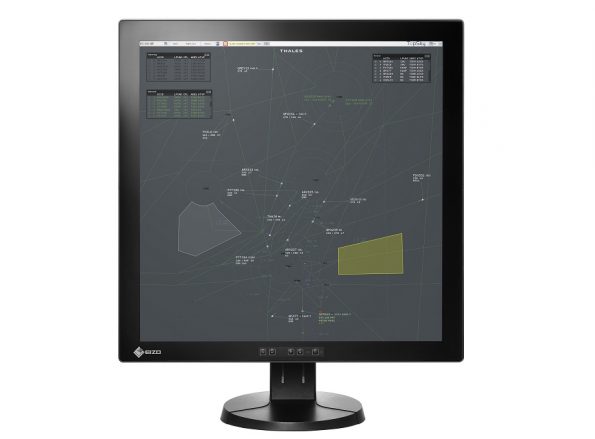

Raptor SQ2825


28.1-inch 2k x 2k Primary Control Monitor

The Raptor SQ2825 is a 5th generation 2K x 2K primary control monitor developed to meet the specific requirements of mission-critical ATC environments. It features a new design, a unique LED direct backlight system, operational reliability, and extensive customization.


15+ Years of Primary Control Monitor Manufacturing

EIZO has been an industry leader in the innovation and development of quality 2K primary control monitors for ATC since 2005. Backed by over 50 years of technical expertise in visual display solutions, the Raptor SQ2825 is a 5th generation 2K x 2K monitor that culminates the features and functionality of EIZO’s line of primary control monitors while adding further value with new technology and improved operational reliability.


Slim Bezels

The unobtrusive bezels are approximately 40% slimmer than the previous model, measuring at just 35 mm on all sides so ATCOs can focus more on the screen.

Protection Glass

Protection glass is optional with two variations – standard and fully flat. Standard glass covers the visible part of the LCD panel and extends to the inner bezel. Fully flat glass reaches to the edges of the monitor for a smooth, streamlined look. The monitor’s housing is built with edge protection for fully flat glass so it is not exposed and vulnerable to damage.

Balanced Design

The monitor’s depth has been reduced, bringing the weight distribution closer to the center of mass for lowering stress on mounting fixtures over time. It is also 50% lighter and more compact than the previous model, weighing just 14.6 kg.

Mounting Flexibility

The newly designed rear housing can be easily configured to any mounting requirements without needing to remove any part of the housing. This ensures flexibility for meeting new installations or hardware changes that require desktop, VESA, chassis, panel mount or any combination thereof.

Rounded Corners

The monitor’s design features rounded corners and edges for a pleasing and modern aesthetic.

Direct Backlight System

Brightness Uniformity

The monitor’s unique LED direct backlight system has 16% more LED cells than its predecessor for increased efficiency. It offers superior brightness uniformity for smoother images compared to edge-type backlight solutions.

Mission-Critical Redundancy

The direct backlight system is divided into four interchangeable quadrants, each of which performs consistently over a lifetime of 100,000 hours. Each quadrant is controlled by two independent sub-unit driver boards that protect the on-screen information from being visually impacted in the unlikely event that an LED stops performing.

Brightness Stabilization

EIZO’s fully automated stability function uses an internal backlight sensor to stabilize the brightness level throughout the life of the monitor, compensating for fluctuations caused by variations in ambient temperature and the passage of time.

Wide Brightness Range

The monitor can be adjusted within a wide brightness range of 2 to 500 cd/m2 to suit your environment’s requirements as well as the needs of the ATCO.

Energy Efficiency

The monitor consumes just 120 watts at maximum brightness (500 cd/m2) and even less under typical operating conditions in control rooms. This saves energy and significantly reduces heat generation within the monitor; a leading cause of component failure.

Durability and Reliability

Industrial-Grade Housing

The monitor’s housing uses full sheet steel industrial-grade housing for durability in demanding mission-critical environments.

Fanless Operation

The monitor provides noiseless, fanless operation while still maintaining low heat output without impacting performance.

24/7 Operation

The Raptor SQ2825 is developed specifically for meeting the stringent requirements of mission-critical ATC environments with 24/7 operation.

Built-In Power Supply

While other solutions may require a bulky power brick to operate, the Raptor SQ2825 has its power supply built in. This provides a cleaner and more manageable installation area. A secondary built-in power supply is available as an option.

Extensive Customization

EIZO offers extensive customization in order to meet the specific needs of individual control centers.

Additional Features

Complete Connection

Dual link DVI video signal inputs are included as well as the option of an additional DisplayPort or analog 5-BNC inputs. The monitor also comes equipped with a wide range of communication interfaces for connection to a network, remote monitor management, or maintenance purposes – RS232, RS422, USB, and TCP/IP

Ανάλυση Οθόνης

Διαγώνιος Οθόνης

Τύπος Panel


Χρόνος Απόκρισης

Τεχνικά Χαρακτηριστικά

Type VA
Backlight Direct LED backlight system
Size 28.1″ / 71.2 cm
Native Resolution 2048 x 2048 (1:1 aspect ratio)
Viewable Image Size (H x V) 503.8 x 503.8 mm
Pixel Pitch 0.246 x 0.246 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 2 – 500 cd/m2
Contrast Ratio (typical) 1800:1
Response Time (typical) 25 ms
Video Signals
Input Terminals DVI (dual link) x 2, 5-BNC (single or dual, optional) or DisplayPort (dual, optional)
Digital Scanning Frequency (H / V) 2 – 130 MHz (pixel) / 60 Hz
Analog Scanning Frequency (H / V) 30 – 130 kHz, 50 – 70 Hz
Sync Formats Separate Sync 1-5 Vpp (75 Ω) / Sync on Green
Upstream USB 2.0: Type-B x 2
Power Requirements AC 90 – 264 V, 47 – 63 Hz
Typical Power Consumption 60 W (Brightness: 150 cd/m2)

50 W (Brightness: 70 cd/m2)

Maximum Power Consumption 120 W
Features & Functions
Brightness Stabilization Yes
OSD Languages English, German, Spanish, French
Communication Interface RS-232C, RS-422, USB, RJ-45
Communication Protocol SNMP, DDM, TCP/IP
Others External Keyboard Interface
Physical Specifications
Dimensions (Landscape, W x H x D) 576 x 599 – 684 x 322.9 mm
Dimensions (Without Stand, W x H x D) 576 x 576 x 119 mm
Dimensions (Chassis, W x H x D) 601 x 576 x 119 mm
Net Weight 19 kg
Net Weight (Without Stand) 14.6 kg
Net Weight (Chassis) 15.8 kg
Height Adjustment Range 85 mm
Tilt 25° Up, 0° Down
Swivel 172° Right, 172° Left
Hole Spacing (VESA Standard) 100 x 100 mm, 200 x 100 mm
Environmental Requirements
Operating Temperature 0 – 40 °C
Operating Humidity (R.H., non condensing) max. 95%
Storage Temperature -25 – 60 °C
Certifications & Standards (Please contact EIZO for the latest information.) CE, UL, c-UL, FCC, REACH, RoHS, WEEE, CCC
Warranty Two Years
Dimension Drawing PDF
