DuraVision Maritime FDU2603WT

25.5″ Touch Screen Marine Monitor

Panel Mount Touch Screen Marine Monitor with LED Backlight for ECDIS / Radar Applications

Σύγκρινε

Durable and Reliable

The FDU2603WT offers durability for use in harsh maritime environments, complying with the conditions for temperature, humidity, and vibration as defined in the IEC 60945 international standard for maritime navigation and radio communication equipment and systems. IP65 rating ensures the monitor can withstand dust ingress and is protected against low-pressure water jets. A coating is applied to make the electronic substrates moisture-proof and the cooling fan is easily accessible for exchanging purposes.

Wide Dimming Range

The wide dimming range of less than 1 cd/m2 up to 470 cd/m2  allows you to adjust to the appropriate brightness level for viewing during the day or at night.

Clear View

The VA panel features wide viewing angles that minimize changes in contrast and gradation to maintain excellent visibility when the screen is viewed from the side. An AR coating is applied to reduce the amount of reflections on the screen for a clear display.

Approval from Classification Societies

The monitor meets the requirements for 12 major maritime classifications with EU RO MR Type Approval. Furthermore, the monitor has obtained approvals for LR (UK), DNV GL (Norway / Germany), ABS (USA), and NK (Japan). Additional certifications are available on request.

Projected Capacitive Touch Panel

The monitor features a projected capacitive touch panel that accepts touch input from a bare hand or special stylus and supports multitouch operation. The panel is also highly resistant to dust and water droplets to minimize unintended input.

Calibrated for ECDIS

Backlight brightness, gamma, and RGB color settings are calibrated at the factory so each monitor achieves accurate color reproduction for meeting the highly specialized requirements of ECDIS systems. The monitor meets IEC 61174, IEC 62288, and IEC 62388 international standards for ECDIS and Radar applications.

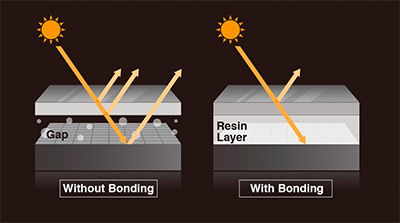

Optical Bonding for High Visibility

Optional optical bonding is available for the monitor. Optical bonding significantly reduces reflective light for high visibility even when the screen is viewed in direct sunlight. A screen with optical bonding is also more resistant to applied pressure, giving it increased physical durability.

Optional Stand

An optional stand is available with the monitor which allows tilt positioning from 0 – 60 degrees. The stand, when combined with the monitor, complies with the conditions for temperature, humidity, and vibration as defined in the IEC 60945 international standard for maritime navigation and radio communication equipment and systems. It also meets the requirements for major maritime classifications such as LR (UK), DNV GL (Norway / Germany), ABS (USA), and NK (Japan).

Long-Lasting LED Backlight

The monitor is equipped with an LED backlight. Compared to conventional CCFL backlights, LED backlights last longer and consume less power. The monitor is also mercury-free for minimal impact on the environment.

24-Hour Use, 3-Year Warranty

The monitor is built for 24-hour use and are backed by a three-year manufacturer’s warranty for long-term reliability.

Ανάλυση Οθόνης

Διαγώνιος Οθόνης

Τύπος Panel

Χρώμα

Χρόνος Απόκρισης

Tεχνικά Χαρακτηριστικά

Model Variations FDU2603WT: Panel mount, black

FDU2603WT-OP: Panel mount, optical bonding, black

Panel
Type VA
Backlight LED
Size 25.5″ / 65 cm
Native Resolution 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) 550.0 x 343.8 mm
Pixel Pitch 0.287 x 0.287 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 176°, 176°
Brightness (typical) 470 cd/m2

(-OP:500 cd/m2)

Contrast Ratio (typical) 1500:1
Response Time (typical) 20 ms (black-white-black)
Touch Panel
Type Projected Capacitive
Touch Points 5
Surface Treatment Anti-Reflection coating
Communication Protocol USB, RS-232C
Touch Life 50 million touches (minimum)
Surface Hardness 5H
Compatible OS Windows 10 / 8.1 / 7 (64-bit, 32-bit), Windows XP (32-bit)
Video Signals
Input Terminals DVI-D (HDCP1.4), D-Sub mini 15 pin
Output Terminals D-Sub mini 15 pin (loop through)
Analog Scanning Frequency (H / V) 31 – 81 kHz, 56 – 76 Hz
Sync Formats Separate, Composite
USB
Upstream USB 2.0: Type-B
Power
Power Requirements AC 100 – 240 V , 50 / 60 Hz

DC 24V

Maximum Power Consumption 108 W
Power Save Mode 10 W or less (AC input)

7 W or less (DC input)

Features & Functions
Preset Modes Custom, Day, Dusk, Night
Communication Interface D-Sub mini 15 pin, DVI-D 24 pin, RS232C
Communication Protocol DDC/CI, RS232C
Physical Specifications
Dimensions (Panel Mount, W x H x D) 624 x 456 x 86 mm
Net Weight (Panel Mount) 15.1 kg / 33.3 lbs

(-OP:15.9 kg / 35.1 lbs)

Environmental Requirements
Operating Temperature -15 – 55 °C
Operating Humidity (R.H., non condensing) 10 – 90 %
Degree of Protection IP65 (front)

IP22 (Rear)

Safe Distance of Nautical Equipment from Compasses
Standard Compass 1.85 m
Steering Compass 1.20 m
Certifications & Standards (Please contact EIZO for the latest information.) Ship Classification: NK (Japan), LR (UK), ABS (US), DNV-GL (Norway / Germany)

General: CB, CE, EAC, RoHS, WEEE, China RoHS, IEC60945 (EMC/environmental testing), IEC61174/IEC62288/IEC62388 (items for monitor), KC (K60950-1, K00022, K00024), CCC (China model only)

Supplied Accessories (May vary by country. Please contact EIZO for details.)
Others Setup manual, CD-ROM, Cleaning cloth
Warranty 3 years, 24-hour use
