RadiForce MX243W

Τιμή:

2.3MP 61cm (24.1″) Color LCD Monitor

24.1″ Color LCD Monitor
24.1-inch widescreen medical monitor with DICOM Part 14 calibration
for viewing medical images.

Τιμή:


Comfortable Use, Convenient Connectivity

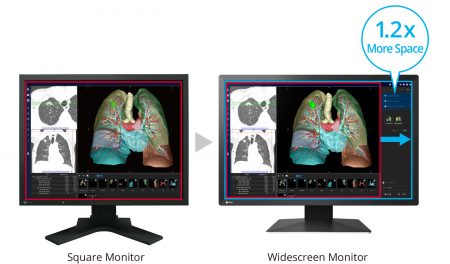

View More with Widescreen

The monitor has a resolution of 1920 x 1200 pixels and 16:10 aspect ratio. This provides more space for comfortably working with images, tool palettes, and other windows compared to conventional square monitors.

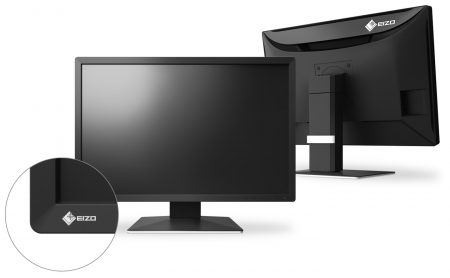

Elegant Cabinet Design

The monitor’s cabinet is designed with rounded corners and elegant curves on the back to present a gentle aesthetic and facilitate a comforting environment for patients and medical staff.

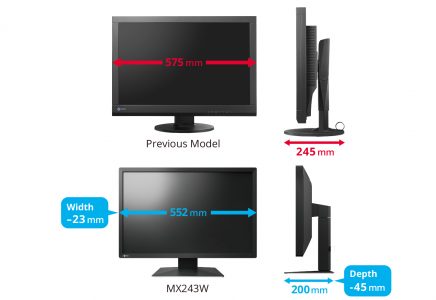

Save Work Space with Sleek Cabinet Design

With the new monitor cabinet and stand design, compared to its predecessor, the monitor’s width and depth are reduced by 23 mm and 45 mm respectively. This results in a monitor that takes up 24% less space, giving you more room for other tasks.

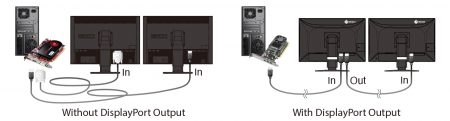

Hassle-Free Multi-Monitor Configuration

Using the DisplayPort connection, you can drive several monitors in a daisy chain sequence. This allows you to configure a multi-monitor setup without the complicated hassle of excessive cabling.

A graphics board that supports daisy chain is necessary.

Compatibility between RadiForce monitors using DisplayPort daisy chains

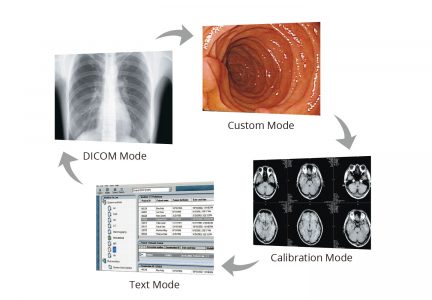

Select the Ideal Mode for Modalities

The CAL Switch function allows you to choose various modes for different modalities such as CR, CT, and endoscopy. Using the bundled RadiCS LE software, modes can be set to automatically switch to optimal image viewing conditions.



Compatibility between RadiForce monitors using DisplayPort daisy chains

High Fidelity Images for Peace of Mind

Display Both Monochrome and Color

The Hybrid Gamma PXL function automatically distinguishes between monochrome and color images pixel by pixel, creating a hybrid display where each pixel has optimum grayscale.

As a result, monochrome images such as CR and DR are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as those used in endoscopy, nuclear medicine, 3D rendering, and fusion imaging are faithfully reproduced corresponding to Gamma 2.2. This improves the efficiency of viewing both monochrome and color images together on one screen.

Compatibility between RadiForce monitors using DisplayPort daisy chains

Visual Assessment

The Kumamoto Chuo Hospital, Japan, conducted a visual assessment of the Hybrid Gamma PXL function included on the RadiForce monitor. Approximately a 37% improvement was noted when comparing the use of a color monitor with Hybrid Gamma PXL to one without it. In addition, Hybrid Gamma PXL was found to operate equally as well as monochrome monitors with GSDF when displaying monochrome images.
See the White Paper “The Advantages of Hybrid Gamma PXL” [PDF]



As a result, monochrome images such as CR and DR are displayed in the ideal grayscale that corresponds to DICOM Part 14, while color images such as those used in endoscopy, nuclear medicine, 3D rendering, and fusion imaging are faithfully reproduced corresponding to Gamma 2.2. This improves the efficiency of viewing both monochrome and color images together on one screen.

Compatibility between RadiForce monitors using DisplayPort daisy chains

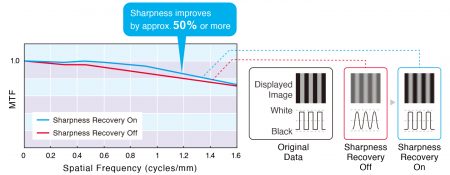

Achieve Clarity True to the Source Data

A medical monitor needs to be capable of high brightness in order to meet performance standards. However, in order to achieve high brightness in an LCD panel, the pixel aperture ratio has to be increased. This causes a typically unavoidable decline in sharpness. With EIZO’s unique Sharpness Recovery technology, the decrease in sharpness (MTF) is restored. This allows you to display an image that is true to the original source data safely on the monitor, even at high brightness levels.

MTF measures numerically how faithfully the panel transfers detail from the original image data for viewing. When Sharpness Recovery is turned on, in the case of a 2 pixel line pair (spatial frequency of 0.926 cycles/mm) the MTF increases by over 50%.

Make the Precise Diagnosis

EIZO carefully measures and sets the grayscale at the factory to ensure each monitor is compliant with DICOM Part 14. Furthermore, at startup or upon wakeup, the EIZO patented drift correction function quickly stabilizes the brightness level and compensates the brightness fluctuations caused by the ambient temperature and the passage of time, allowing medical images to be faithfully reproduced with stable brightness and grayscale.

Rest Assured with Image Consistency

Maintain the Precision

Perform a simplified calibration compliant with DICOM Part 14 using the bundled RadiCS LE quality control software. RadiCS LE corrects the brightness and grayscale tones of the monitor to maintain image accuracy and consistency over time.

Warranty with Safety and Trust

EIZO and its authorized distributors offer a five-year limited warranty.

Stay Confident with Stable Brightness

EIZO’s confidence in its product quality extends to brightness stability which is also covered during the usage time specified in the warranty.

Care for the Environment

Conserve to Preserve

The monitor is made of approximately 19% recycled plastic. This cuts down on the amount of plastic waste going into the environment, conserves resources, and promotes reuse of materials for preserving our natural ecosystems.

Cushioning Environmental Impact

EIZO is moving away from using plastic and styrofoam in its packaging to reduce environmental impact. The monitor is safely packed using molded pulp, which is made from recycled cardboard and newspaper, and cables are wrapped in environmentally friendly pulp sheet instead of plastic bags.

Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations’ Sustainable Development Goals (SDGs).

Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.

Learn more<

Environmentally Friendly
Our healthcare products are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.

Τεχνικά Χαρακτηριστικά


Model Variations MX243W-BK: with stand, black
Panel
Type Color (IPS)
Backlight LED
Size 24.1″ (61 cm)
Native Resolution 1920 x 1200 (16:10 aspect ratio)
Viewable Image Size (H x V) 518.4 x 324.0 mm
Pixel Pitch 0.270 x 0.270 mm
Display Colors 10-bit (DisplayPort): 1.07 billion from a palette of 543 billion (13-bit) colors

8-bit: 16.77 million from a palette of 543 billion (13-bit) colors

Viewing Angles (H / V, typical) 178° / 178°
Brightness (typical) 410 cd/m2
Recommended Brightness for Calibration 220 cd/m2
Contrast Ratio (typical) 1350:1
Response Time (typical) 22 ms (black-white-black)
Video Signals
Input Terminals DisplayPort, DVI-D
Output Terminals DisplayPort (daisy chain)
Digital Scanning Frequency (H / V) 31 – 76 kHz / 59 – 61 Hz
USB
Upstream USB 2.0: Type-B
Downstream USB 2.0: Type-A x 2
Power
Power Input AC 100 – 240 V: 50 / 60 Hz
Typical Power Consumption 26 W
Maximum Power Consumption 56 W
Power Save Mode 0.6 W or less
Sensor Backlight Sensor
Features & Functions
Brightness Stabilization Yes
Digital Uniformity Equalizer Yes
Hybrid Gamma PXL Yes
Work-and-Flow Point-and-Focus
Preset Modes CAL Switch (DICOM, CAL1, CAL2, Custom, sRGB, Text)
OSD Languages English, German, French, Italian, Japanese, Simplified

Chinese, Spanish, Swedish, Traditional Chinese

Physical Specifications
Net Weight 7.8 kg
Net Weight (Without Stand) 4.9 kg
Hole Spacing (VESA Standard) 100 x 100 mm
Certifications & Standards (Please contact EIZO for the latest information.) CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
FDA 510(k) Clearance for General Radiography
Dedicated Software
Monitor Quality Control Software RadiCS Supported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables DisplayPort (3m)
Others AC power cord (3 m), USB Type-A – USB Type-B cable (3m), Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual), instructions for use
Warranty 5 Years
