CuratOR Surgical Panel SP1-554K

The Surgical Panel SP1-554K with integrated monitor as well as build-in IT and video management components is a digital image viewing system, designed for use in the operating room. Integrated into the hospital’s IT structure, it supports various workflows. The SP1-554K provides the OR team with a perfect view also from remote locations in the operating room.

Built-in 55” monitor (touchscreen option)
Workstation for image viewing
Space-saving wall mounting
High ease of service and maintenance
Flexible choice of material, configuration and accessories
Completely sealed within the OR and disinfectable

Προσθήκη στα Αγαπημένα

Σύγκρινε

Optimized View Through Simple LUT Switching

Every 4K Surgical Panel is equipped with an easy-access LUT switch as standard. One of five predefined lookup tables can be selected at the simple press of a button. This allows operators to display various medical images and videos under optimal viewing settings.

Customized Housing

The housing dimensions of the Surgical Panel can be individually adapted to the conditions in the operating room. In addition, the housing color can be selected from the RAL color palette depending on the color concept on site.

Wide Ranging Monitor Options

The Surgical Panel are available in a wide range of screen diagonals for flexibly meeting local application requirements. The option to combine a viewing unit with a 24“ Full HD HIS workstation also offers a full viewing environment while saving on space.

Intuitive Touch Operation

Every CuratOR Surgical Panels can be equipped with a touchscreen to facilitate intuitive operation of software in the OR. They are easily operated while wearing gloves for use in sterile environments.

05b_vmbasic_layouts_surgical_panel.640x0

Flexible Integrated Video Management VMbasic

A modular interior design enables customer-specific configuration. Every 4K Surgical Panel can be optionally equipped with the video management function VMbasic. Easily switch between video signals connected internally or optionally on the front at the simple press of a button. Two further buttons allow the selection of the preset layouts and the rotation of the video inputs by keeping the active layout.

Accessories and Connectivity

Surgical Panel have front USB ports as standard for connecting peripheral devices. There is also the option of integrating additional interfaces on the front frame. These can be individually connected to the inputs available in video management.

OR Integration and Cleanability

With its flat surface, the Surgical Panel can be completely sealed in the front and integrated in the OR wall, ensuring safety and simple cleaning and disinfection procedures. With intelligent heat distribution over the front surface, the units do not require specialized ventilation systems.

08_mounting_options_surgical_panel-1.640x0

Flexible Mounting Options

The device is designed for both surface or flush-mounted installation to allow easy fit into the local architectural preferences and physical circumstances on site.

Easy Maintenance and Service

The hinged front allows easy access to the device without complicated disassembly or tools. With its unique locking system, no screws need to be taken out, making maintenance procedures on the installed components simple and efficient.

Compatible Products

CuratOR Caliop

OR Software
The software for efficient OR integration.

Specifications

General

Model Variations	SP1-554K: without touchscreen SP1-554KT: with touchscreen
Certifications & Standards (Please contact EIZO for the latest information)	CE, UKCA, IEC/EN 62368-1, IEC/EN 60601-1, IEC/EN 60601-1-2, RoHS, WEEE

Housing

Material	Powder-coated sheet steel
Front	Combination of power-coated stainless steel and anti-reflective safety glass (ESG)
Color	Available in every RAL color
Mounting Options	Flush mounting (optional: surface mounting)

Panel 55″ (4K)

Size	55″ (138.8 cm, 16:9 aspect ratio)
Type	Color TFT LCD Panel with DICOM® Preset
Native Resolution	3840 × 2160 (UHD)
Display Colors	1.07 billion colors
Pixel Pitch	0.315 mm x 0.315 mm
Brightness (typical)	700 cd/m²
Contrast Ratio (typical)	1100:1
Viewing Angles (H / V, typical)	178º, 178º
Response Time (typical)	8.0 ms (Gray-to-Gray)
Backlight	LED

Hardware & Software Components

Touchscreen	Projected capacitive, multi-touch (SP1-554KT only)
IT Components (Expandable within the scope of the PC specification)	INTEL® Core™ i5 processor – 3.0 GHz, INTEL® chipset, 18 MB cache, 8 GB DDR3 RAM, SATA SSD, LAN RJ 45 – 10/100/1000 Base TX x 2
Operating System	MS Windows 10 Pro, MS Windows 11 Pro
Keyboard / Mouse	Anti-microbial medical silicone keyboard with integrated mouse storage (foldable), silicone mouse (visual 5 keys, laser mouse /IP65, occupies 1x USB)

Inputs (front side)

USB	USB Type-A: 2.0, 3.0
Signal Inputs (optional, with VMbasic only)	DisplayPort™, DVI-I Single Link, HDMI® (4K@30Hz), HDMI® (4K@60Hz) x 2

Push Buttons (front side)

Standard	Main switch, system switch, LookUp table switch (DICOM normal, DICOM bright, Gamma 1.8, 2.0, 2.2, 2.4)
VMbasic (optional)	Signal input switch (DisplayPort, DVI-I Single Link, HDMI (4K@30Hz), HDMI (4K@60Hz x 2), layout switch (PiP, PaP, LR, TB, Quadsplit, Single), rotate signal inputs with active layout

Power

Maximum Power Consumption	275.0 W
Power Requirements	100 – 240 V / 50 – 60 Hz / 4 – 2 A
Thermal Load	990.0 kJ/h

Physical Specifications

Net Weight	85 kg
Dimensions (mm)	Device (W x H x D): 1600 x 1000 x 120 Niche (W x H x D): 1610 x 1010 x 140 Masking Frame (W x H): 1630 x 1030

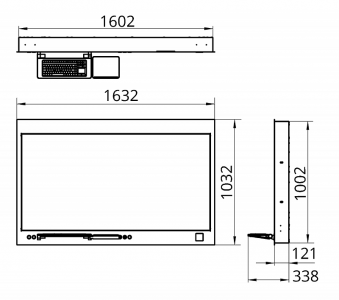

Dimensions
