DuraVision EVS1VX
Image Optimization System
Create a Visual Advantage
The DuraVision EVS1VX is an image optimization system that analyzes and processes video footage in real time to improve visibility for surveillance, infrastructure maintenance, image analysis, and more.
Enhance Visibility with EIZO’s Image Optimization Systems
DuraVision EVS1VX and EVS1VS image optimization systems connect to a camera, recorder, or other image output device via HDMI® and process incoming video content to make it easier to see. They use EIZO’s unique visibility enhancement technology to analyze and process images in real time without altering the source data.
In addition to all the features included with the standard model EVS1VS, the EVS1VX has more advanced control over image processing. This allows operators to more effectively tailor the settings according to the scene displayed, as well as target specific areas of the image for focused analysis.
Image Optimization Demo Video
See how EVS1VX enhances images in difficult to see scenarios.
Create a Visual Advantage
- Crime Prevention & Fault Detection
- Infrastructure Maintenance Support
- Reduced Risk of Human Error
- Crime Prevention & Fault Detection
- Infrastructure Maintenance Support
- Operator Workforce Optimization
Applications
The EVS1VX and EVS1VS enhance visibility in a diverse range of situations where close inspection of video is needed.
Real-Time Surveillance
Manufacturing & Waste Treatment
Supervise Operations
Surveillance Monitoring
Detect Suspicious Activity
Product & Food Inspection
Identify Defects
Harbor Surveillance
Detect Suspicious Objects
Waterway Monitoring
Determine Anomalies
Infrastructure Maintenance
Railway Monitoring & Equipment Management
Safety Measures and Disaster Prevention
Highway, Pier & Tunnel Inspection
Condition Based Maintenance
Pylon, Sewer & Dam Monitoring
Early Hazard Detection
Image Analysis
Scientific Image Analysis
Detailed Image Assessment
Enhanced Visibility in Real Time
The EVS1VX is powered by EIZO’s cutting-edge Visibility Optimizer X technology which analyzes and adjusts images pixel-by-pixel in real time.
Below images are for illustrative purposes.

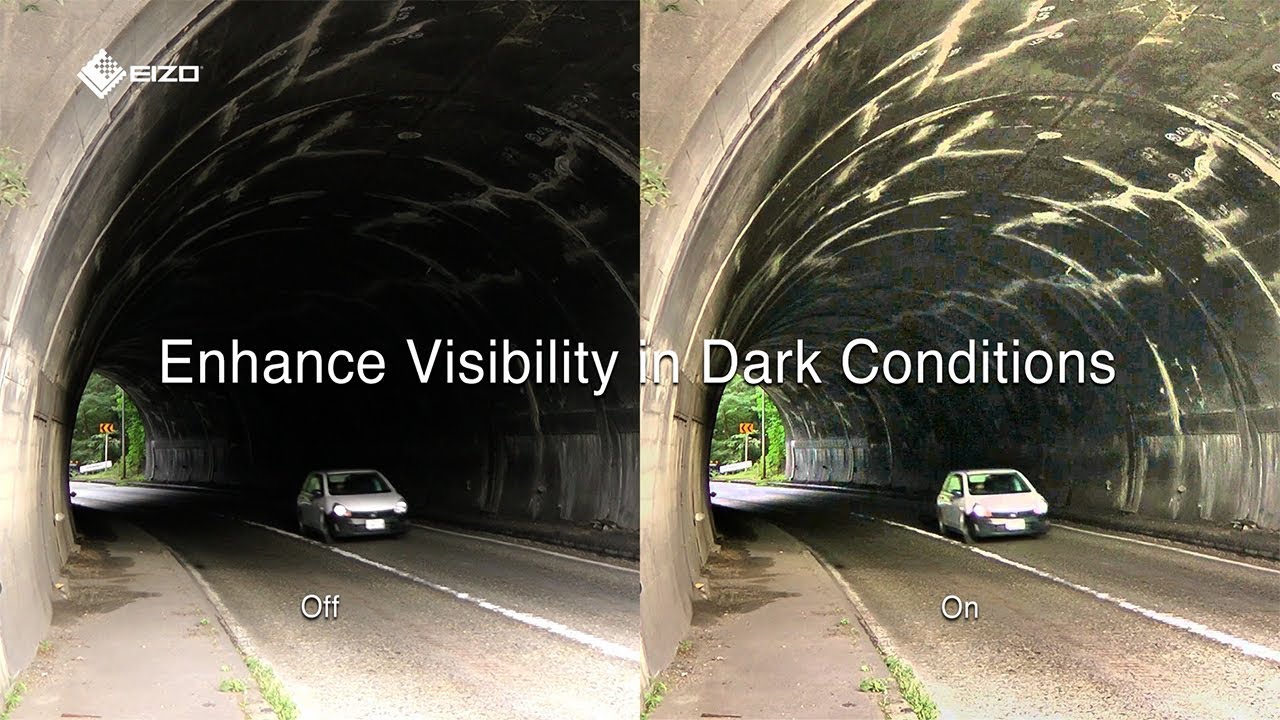

Feature 1: Optimize Hard-to-See Images
The EVS1VX detects areas of the image that are difficult to see due to low lighting conditions or haze and corrects them to be more visible. It addresses both dark and light areas of the image by adjusting the brightness of each pixel, while preserving details for a realistic sense of depth. This is useful not only for surveillance at night or in foggy conditions, but also for detecting irregularities or cracks in surfaces, such as concrete.
- Patent no. 5470415, no. 6749510
Image processing is carried out based on the Retinex theory, where pixels are individually optimized.
Off
On
Feature 2: Reduce High-ISO Noise
The EVS1VX combines both 2D and 3D noise reduction functions to improve clarity in contours and help distinguish objects in video, particularly for nighttime surveillance. 3D Noise Reduction uses visual information from the previous frame to assess the disparity between subsequent frames and is effective when monitoring static video. 2D noise reduction analyzes content based on a single frame and is optimal for video that captures motion or has scene changes. The EVS1VX automatically prioritizes the noise reduction method to suit the content displayed.
Off
On
Feature 3: Distinguish Details in Color Dominated Images
The EVS1VX improves visibility in images dominated by a single color. It addresses colors with little variation in brightness to make them easier to distinguish. This is particularly effective when analyzing endoscopic and pathological images, or for detecting objects in underwater images.
- Patent no. 7749504
Off
On
EVS Image Optimization Utility
Make fine adjustments to display modes with EIZO’s proprietary EVS Image Optimization Utility and maximize footage clarity with enhanced contours, contrast, and brightness.
|
- The EVS1VX supports unencrypted FAT32 formatted devices.
EVS1VX Unique Features
Capture Stills of Any Scene Directly to USB
The EVS1VX allows operators to capture stills from any enhanced scene and save them directly to a USB flash drive using a USB numeric keypad. Captured stills inherit currently set image enhancements so they can be used for secondary review or for investigative purposes. This feature is also useful for tracking damages in infrastructure, such as roads and piers, or defects in product manufacturing.
Local Image Enhancement
With the EVS Image Optimization Utility, you can custom select a specific area of the screen to apply image enhancement. This allows you to stay focused on regions of interest or limit image enhancement to only areas that require it.
Preset display modes: Off Mode, Standard, Balanced, High, Low, Custom 1, 2, 3, 4, 5.
The Right Display Mode for the Right Situation
Choose between the 4 pre-installed display modes (Standard, Balanced, High, Low) or add up to 5 custom modes which you can fine-tune to suit specific viewing environments. The EVS1VX can register up to 10 display modes which you can change between via the front buttons. You can also delist unused display modes so operators can switch to the right mode quickly.
Additional Features
The EVS1VX has two HDMI inputs, one HDMI output, and is equipped with an ethernet port to carry out firmware updates via the browser. The EVS1VX is covered by a 2-year, 24-hour use warranty.
Choosing the Right System
EIZO’s image optimization systems are available in two models: the EVS1VX for advanced image enhancement and the standard model EVS1VS.
| EVS1VX | EVS1VS | ||
|---|---|---|---|
| Application | Benefit | Performance | |
| Night Surveillance | Brightens dark areas | Very High | High |
| Reduces high-ISO noise | High* | – | |
| Infrastructure & Maintenance | Distinguishes cracks in walls or concrete | Very High | High |
| Makes manufacturing defects easier to detect | Very High | High | |
| Reduces noise from video compression | High* | High | |
| Outdoor Surveillance | Reduces visual impact of fog and atmospheric haze | Very High | High |
| Image Analysis | Distinguishes details in images dominated by a single color | High* | – |
| Functionality | |||
| Capturing & Sharing | Export enhanced images and settings | Yes* | – |
| Range of Applications | Quickly switch between display modes | Yes | – |
| Targeted Areas | Enhance a specific area of the image | Yes | – |
*Optional feature.
Recommended Monitors
EIZO recommends these monitors to use with the image optimization systems.
- 4 video inputs, including HDMI
- 4-port USB hub
- 3-sided frameless
- Space-saving features
- Eco-friendly & ergonomic features
- 4 video inputs, including HDMI
- 4-port USB hub
- 3-sided frameless
- Space-saving features
- Eco-friendly & ergonomic features
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations’ Sustainable Development Goals (SDGs). |
Industry, Innovation, and InfrastructureDuraVision offers a range of visual solutions for facilities that are indispensable to people’s daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer’s warranty, and after-sales services. |
Environmentally ConsciousOur products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system. |
Τεχνικά Χαρακτηριστικά
| Video Signals | |
|---|---|
| Input Terminals | HDMI x 2 |
| Output Terminals | HDMI |
| Video Formats | 1080/60p, 1080/59.94p, 1080/50p,
720/60p, 720/59.94p, 720/50p |
| USB | |
| Upstream | USB 2.0: Type-B |
| Host | USB 2.0: Type-A x 2 |
| Power | |
| Power Input | AC 100 – 240 V, 50 / 60 Hz |
| Maximum Power Consumption | 45 W |
| Features & Functions | |
| Visibility Optimizer | Visibility Optimizer X |
| Communication Interface | USB, Ethernet |
| Others | Area Selection, Preset |
| Physical Specifications | |
| Dimensions (W x H x D) | 240.5 x 53.2 x 143.8 mm |
| Net Weight | 1.4 kg |
| Environmental Requirements | |
| Operating Temperature | 0 – 40°C |
| Operating Humidity (R.H., non condensing) | 20 – 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, UKCA, cTUVus, FCC-A, CAN ICES-3 (A), VCCI-A, RCM, RoHS, WEEE |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | HDMI (2 m) x 2 |
| Others | AC adapter, User’s manual |
| Warranty | 2 Years (24-hour use) |
| Dimension Drawing |
