Ultra-High Sensitivity HD Zoom Camera

The SSZ-9700 is an ultra-high sensitivity video camera with a built-in 35x optical zoom lens. It is useful in a range of fields and applications where clear images are required, including low-lit environments, such as river ports, for natural disaster monitoring, law enforcement, and surveillance of locations of interest.


Ultra-High Sensitivity for Video Surveillance

The SSZ-9700 with its built-in optical zoom lens provides highly visible images in conditions that are dark or difficult to see in.

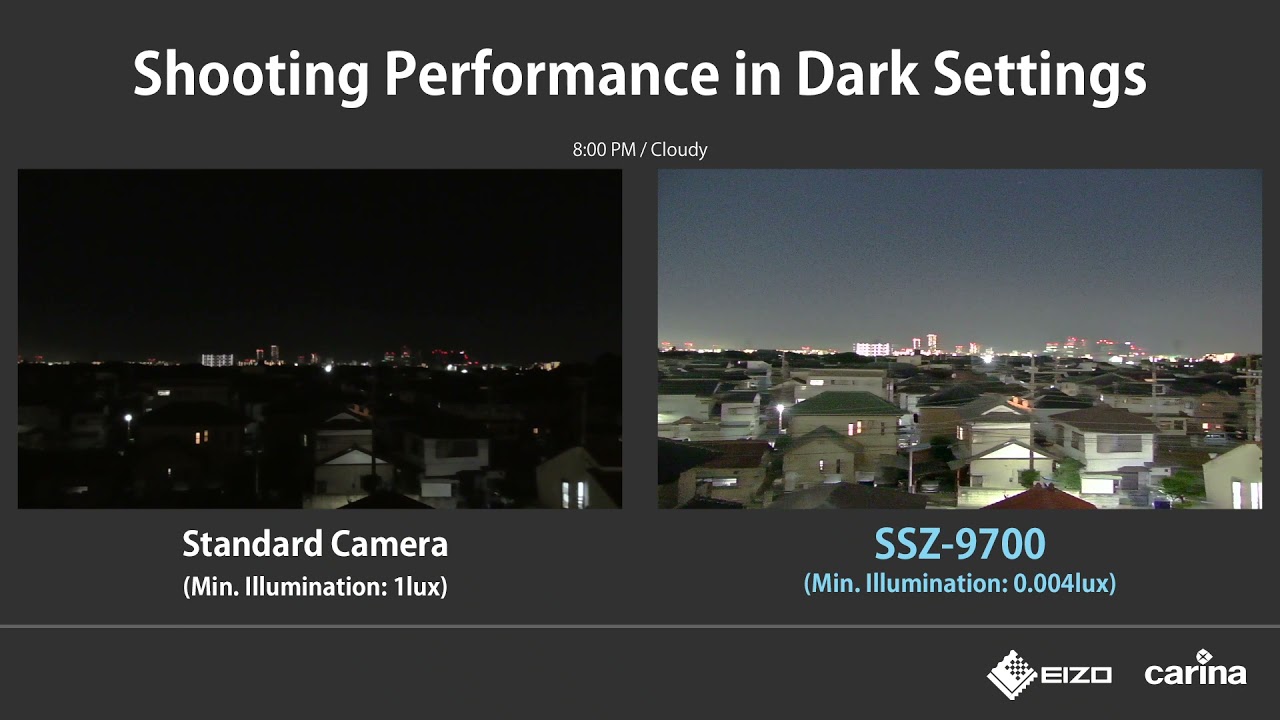

Color Imaging in Low-Lit Conditions

The SSZ-9700 captures color images, even under extremely dim lighting conditions as low as 0.004 lx. This provides clearer imaging in dark environments or poor weather conditions compared to a standard video camera.

Below: Dam Water Level Surveillance  Time: After Sunset / Weather: Cloudy


Below: Riverside Surveillance  Time: After Sunset / Weather: Cloudy


Up to 350x Maximum Zoom Ratio

The built-in 35x optical zoom lens covers a focal length range of 6.5 to 230 mm and a 2.12 megapixel, 1/1.8 inch CMOS sensor. Combining 35x optical zoom and 10x digital zoom allows you to achieve a maximum zoom ratio of up to 350x (f=10,500 mm in 35 mm equivalent).

When using digital zoom, resolution is lowered.

Below: Building 4.6 km in the distance


High Visibility

Defog Function

The camera includes two functions for lessening the impact that fog or haze has on the image. These allow operators to more easily identify objects and discern important visual information.

Optical Defog

The Optical Defog function increases visibility by capturing images in the infrared region so objects become more discernible to the human eye.

Images are displayed in monochrome when using Optical Defog.


Digital Defog

The Digital Defog function stretches the contrast using image signal processing to adjust the difference in brightness and color for improved clarity of faint images.


2D/3D Noise Reduction

The camera includes unique 2D/3D noise reduction for optimal SN ratio even at high gain settings.

HDR Function

The camera is equipped with an HDR function for capturing and combining multiple exposures, resulting in clear images with a wider dynamic range.

Flexible Installation

Complete Connection

The SSZ-9700 is equipped with 3G-SDI and HDMI® connections with simultaneous output. It is also equipped with an RS-485 communication interface for seamless integration into advanced surveillance systems.

Compact Size and Weight

With a compact size of 95 x 95 x 165 mm (H x W x D) and weighing just 1.5 kg, the SSZ-9700 can easily be installed into small form housing.

Additional Features

  • Equipped with one push auto focus and continuous focus
  • Low power consumption
  • Developed and manufactured in-house for long-term reliability

Durability and Reliability

24-Hour Use, 2-Year Warranty

The SSZ-9700 is built for 24-hour use and is backed by a 2-year manufacturer’s warranty for long-term reliability.

Name of Parts

Full Solution

The DuraVision EVS1VX is an image optimization system that analyzes and processes video footage in real time to improve visibility. The SSZ-9700 used with the EVS1VX and FlexScan HDMI-equipped monitors provides a highly visible solution for security & surveillance.

EIZO also offers the SSC-9700 camera which comes without a lens so customers can attach a lens of their choice.

Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations’ Sustainable Development Goals (SDGs).

Industry, Innovation, and Infrastructure

DuraVision offers a range of visual solutions for facilities that are indispensable to people’s daily lives such as hospitals, businesses, airports, factories, public transportation hubs, and many more. We support the uninterrupted continuation of security, industrial, and other activities with robust product build, manufacturer’s warranty, and after-sales services.

Environmentally Conscious

Our products for industrial environments are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system.

Τεχνικά Χαρακτηριστικά

Lens Unit
Zoom Ratio 35x (with digital zoom On: up to 350x)
Focal Length 6.5 – 230 mm
Angle of View (H x V) [16:9] Wide: 60.4° x 35.9°, Tele: 2.0° x 1.2°
Aperture Range F1.5 – F22
Optical Filter IR cut-off filter, Dummy filter, Defog filter
Zoom / Focus / Aperture Control Stepper motor
Focus Range 5 m – ∞
Focus System Auto Focus, One Push Auto Focus, Manual
Camera Unit
Imaging Sensor Single Panel CMOS, RGB Bayer Array
Total Pixels (H x V) Approx. 2.27 million pixels 2016 x 1128
Effective Pixels (H x V) Approx. 2.12 million pixels 1936 x 1096
Pixel Size (H x V) 4.1 x 4.1 μm
Optical Size 1/1.8 inch
Sensor Framerate 59.94 fps (29.97 fps when in HDR mode)
Scanning System Progressive
Minimum Illumination 0.004 lx (F1.5 1/30 s, 50 IRE, +78 dB)
Horizontal Resolution 900 TV lines or more
SN Ratio 50 dB or above (γ=1, Contour Correction OFF, DNR OFF)
Exposure Mode Full Auto, Shut. Prio., Gain Prio., Iris Prio., Manual
Gain Manual: 0 – 78 dB (0.3 dB step)
Electronic Shutter 60 Hz system: 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 s

50 Hz system: 1/1, 1/2, 1/3, 1/6, 1/12, 1/25, 1/50, 1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 s

Iris F1.5 – F22
ALC Adjustment Level adjustment, Limits adjustment
Backlight Correction On, Off, Spot
Gamma Correction 0.35 – 0.55 (0.01 step) / 1.0
DNR Off, Low, High
White Balance ATW1, ATW2, AWC, Manual
HDR Mode Off, HDR, Auto Knee, Auto Black Stretch
Defog Optical Defog: Off, On

Digital Defog: Off, Low, Mid, High

Color Matrix R, G, B, Ye, Cy, Mg 6-axis adjustment
Image Quality Adjustment (Others) Detail, Chroma, Black Level
Digital Zoom 1 – 10x (in tandem with optical zoom, Off / Max. x4 / Max. x10)
Image Reversal Mirror, Flip, Mirror Flip
Privacy Mask 8 masks Gray, White, Black
Test Pattern Color Bar, Grayscale, Built-in Cross Line
Image Output Terminal HDMI, BNC (3G-SDI)
Serial Port RS-485
Video Output 1080p/59.94 (LEVEL A), 1080i/59.94, 1080p/29.97, 1080p/50.00 (LEVEL A), 1080i/50.00, 1080p/25.00
Power Supply DC 12 V
Power Consumption 11 W
Operating Temperature / Humidity Range -10 – 50°C / 10 – 90%
Storage Temperature / Humidity Range -10 – 60°C / 10 – 90%
Dimensions (W x H x D) 95 x 95 x 165 mm
Weight 1.5 kg
Supplied Accessories User Manual
Warranty 2 Years (24-hour use)
Dimension Drawing PDF
