DuraVision FDF4627W-IP

46″ IP Decoding Monitor

The DuraVision FDF4627W-IP features powerful decoding performance and PC-less connection for secure and hassle-free installation. Its large 46-inch screen allows more information to be viewed conveniently in one place.


Solutions for Every Market

EIZO’s IP decoding solutions provide high performance, long-term reliability, and flexible installation to a wide range of environments.

Integrated Solution

The DuraVision FDF4627W-IP connects to an IP camera or switch to immediately begin streaming video. It does not require a PC, software, or other hardware to operate, greatly simplifying installation and saving on time and labor costs. This also eliminates several potential points of failure and addresses security concerns typical of a conventional setup by heavily reducing the amount of equipment needed to manage sensitive visual data.

Large 46″ Screen

The DuraVision FDF4627W-IP displays full HD resolution (1920 x 1080) on a large 46″ screen. This provides ample space for viewing multiple video feeds at once.

Powerful Performance

Video Decoding

The DuraVision FDF4627W-IP can decode H.264 and MJPEG codecs, displaying them in real time for assessing any situation quickly. In addition, the decoding technology ensures a high fps (frames-per-second) for displayed content, even when streaming high-resolution video. For example, 16 video feeds at 640 x 480 resolution displayed simultaneously on a single monitor achieve a consistent 20 fps.


Examples of framerate at different resolution and screen combinations.

Secure Investment with Support for Over 250 Cameras

The DuraVision FDF4627W-IP supports cameras with ONVIF Profile S, Axis VAPIX, and Panasonic protocols for flexible installation and ensured interoperability with a wide range of products. In addition, a direct connection through RTSP is available (Direct URI).
Camera compatibility details

Register Cameras with the Intuitive Web UI

Up to 16 different IP cameras can be registered to the IP decoding monitor through the intuitive web UI. Cameras can be discovered automatically or registered manually, and individual settings are easily managed from a remote location.

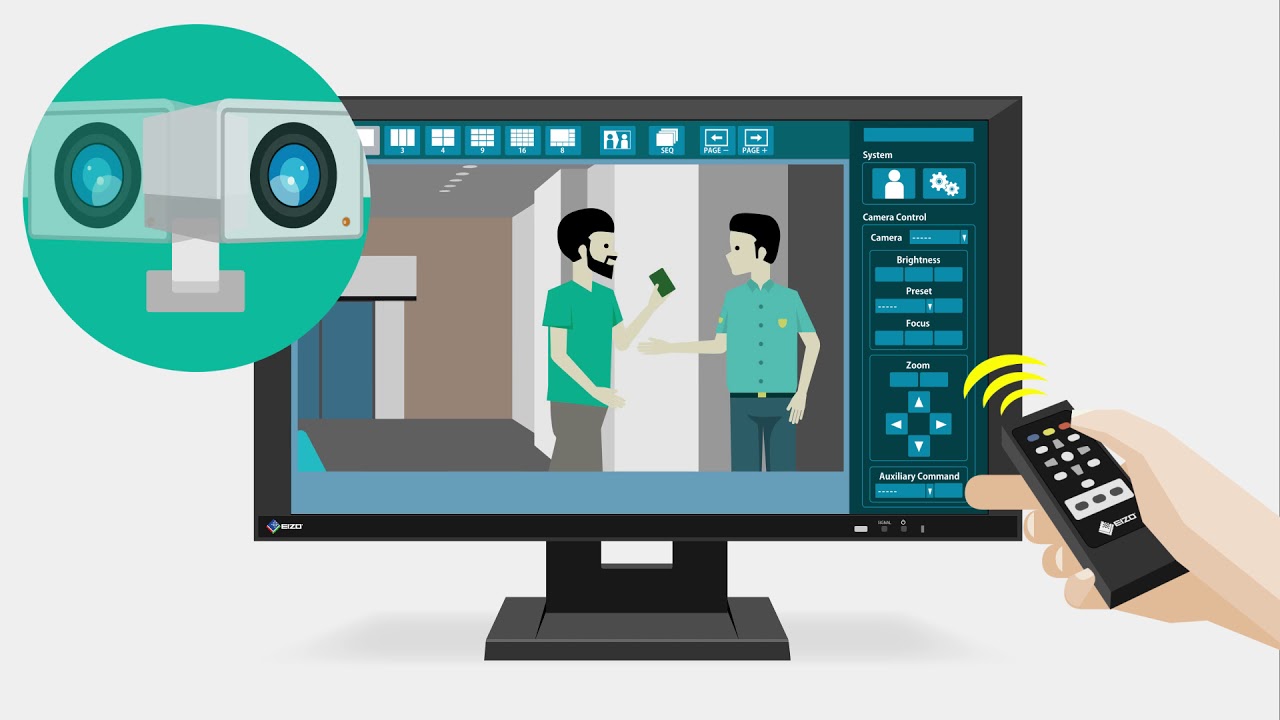

Live Streaming Directly from IP Cameras

Connecting IP cameras directly to the DuraVision FDF4627W-IP allows for the live streaming of video without a decentralized recording solution, such as edge recording or cloud archiving. This provides a solution for scenarios which require live streaming without the storage of recorded images.

Features for Ease-of-Use

Adjustable Screen Layout

With the user-friendly web UI, you can easily adjust the layout of the video streams with 6 default options, displaying up to 16 screens on the monitor. In addition, flexible arrangement of the screens in a custom layout allows you to fulfill individual viewing needs. With custom layout you can merge individual windows to focus on specific areas, or split them to see more on a single screen. Video feeds can be viewed in the original aspect ratio or stretched to fill the custom-created space.


Choose from 6 default layouts.

Upgraded Functionality with Firmware Updates

EIZO’s in-house development team continues to provide upgraded features and functions to its IP decoding solutions through periodic firmware updates. Innovating these updates in-house ensures EIZO provides its customers with the latest functionality and technical support with efficiency and reliability.

Download the latest firmware

Integration with Security Systems

Custom Event Response with Alert-to-Action

The web API supports custom integration with local security systems and devices to allow communication with and response to alerts over the network. When an event occurs and an alert is sent from IP cameras, access control,  hazard detection, VMS, or other systems, EIZO’s IP decoding solution responds with a preassigned action, such as layout adjustment, message display, audio activation, camera adjustment, masking, and more. Implementing an intelligent visual communication system into the workflow ensures operators have the most pertinent information at the right time to respond to situations quickly. EIZO works closely with security system providers and end users to custom tailor Alert-to-Action to streamline individual environments.

Alert-to-Action for Hospitals

An efficiently running facility relies heavily on nursing staff and security personnel having the right information at the right time. See how Alert-to-Action helps facilitate optimal patient care, maintain safe environment, and save time and resources.

Learn more

Synergy with Leading VMS

EIZO works with security & surveillance leaders to ensure technical compatibility and streamlined functionality with various video management systems/software (VMS).

Co-Development of User-Requested Plugins

EIZO came together with leading VMS makers to design plugins to meet highly requested end user requirements. By fully integrating into these VMS frameworks, users can easily setup, manage, and command EIZO’s IP decoding solutions from a centralized platform.


High Visibility

Visibility Optimizer for Clear Images

EIZO’s unique technology called Visibility Optimizer includes a number of functions for improving the clarity of images in security & surveillance environments. Individually optimize these settings for up to 4 connected cameras in any layout.


Low-Light Correction

Low-Light Correction detects areas of the screen that are dark and difficult to see and adjusts the brightness of each pixel. This reproduces highly visible images with a realistic sense of depth by brightening dark areas while keeping lighter areas from becoming washed out.

Outline Enhancer

Outline Enhancer analyzes the displayed content and ensures that noise is not accentuated while correcting blurred areas for a sharper, clearer image. For images with a great deal of depth, it sharpens the foreground more strongly to maintain a real-world sense of focus.

Noise Reduction

The monitor includes settings to reduce the amount of block noise that occurs due to video compression.

Day and Night Preset Modes

Day and Night preset modes are optimized for displaying images under different environmental conditions throughout the day. You can easily switch between modes with the included remote control.

Clear View Across the Screen

The monitor is equipped with a non-glare IPS panel with wide viewing angles for minimal color shift and contrast change, even when viewed off-center. This ensures accurate color reproduction and clear visibility across the screen.

Flexible Installation

VESA-Supported Solution

The DuraVision FDF4627W-IP can be mounted on a wall or ceiling using VESA-supported fixtures for convenient installation in any environment.

Built-In Power Supply

The AC power supply is built-in so you can easily connect with a single power cord. This helps to keep the installation area clear of additional clutter.

Durability and Reliability

24-Hour Use, 2-Year Warranty

The monitor is built for 24-hour use and is backed by a two-year manufacturer’s warranty for long-term reliability.

IP Decoding Solution Range

Διαγώνιος Οθόνης

Τεχνικά Χαρακτηριστικά

Model Variations FDF4627W-IP: without Stand, black
Type VA
Backlight LED
Size 46″ / 116.8 cm
Native Resolution 1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V) 1,018.1 x 572.7 mm
Pixel Pitch 0.530 x 0.530 mm
Display Colors 16.77 million
Viewing Angles (H / V, typical) 178°, 178°
Brightness (typical) 700 cd/m2
Contrast Ratio (typical) 4000:1
Response Time (typical) 6.5 ms (gray-to-gray)
Video Processor
Simultaneous Display Channels 16 (maximum)
Registrable Cameras 16 (maximum)
Protocol ONVIF Profile S, Axis VAPIX, Panasonic, RTSP
Video Codec H.264, MJPEG
Video Input Performance (resolution / framerate) *Bitrate 4096 kbps 1920 x 1080 / 20 fps (maximum)

4 channels: 1920 x 1080 / 20 fps

16 channels: 640 x 480 / 30 fps

Bitrate 8192 kbps (maximum)
Video Signals
Input Terminals IP Camera: RJ-45


Digital Scanning Frequency (H / V) HDMI: 31 – 68 kHz / 49 – 61 Hz
Wired LAN IEEE802.3ab (1000BASE-T) / IEEE802.3u (100BASE-TX)
Transmission Rate 1000 Mbps, 100 Mbps
Host USB 2.0: Type-A x 2
Power Requirements AC 100 – 120 V/ AC 200 – 240 V, 50 / 60 Hz
Maximum Power Consumption 120 W
Features & Functions
Visibility Optimizer Visibility Optimizer
Preset Modes Day, Night
OSD Languages English, German, Japanese
Others Key Lock, USB Lock, Remote Lock
Physical Specifications
Dimensions (Without Stand, W x H x D) 1,067×622.5×80.4 mm
Net Weight (Without Stand) 19.6 kg / 43.2 lbs
Hole Spacing (VESA Standard) 400 x 200 mm, M8, screw depth 10 – 15 mm
Environmental Requirements
Operating Temperature 0 – 40°C
Operating Humidity (R.H., non condensing) 20 – 80%
Certifications & Standards (Please contact EIZO for the latest information.) CB, CE, UL/cUL, FCC-A, CAN ICES-3 (A), VCCI-A, CCC, RoHS, WEEE, China RoHS
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Others AC Power cord (1.8m) (China model only), Setup manual, Remote control with battery
Warranty 2 years, 24-hour use
Dimension Drawing PDF
