A 32-inch widescreen 3D surgical monitor with 4K UHD (3840 x 2160 pixels) for faithful reproducing stereoscopic images for endoscopy, microsurgery, and other high-precision procedures.
Τιμή:
This monitor faithfully reproduces stereoscopic images in 4K UHD resolution (3840 x 2160) at a high brightness of up to 850 cd/m², achieving both detail and depth for endoscopy and microsurgery.

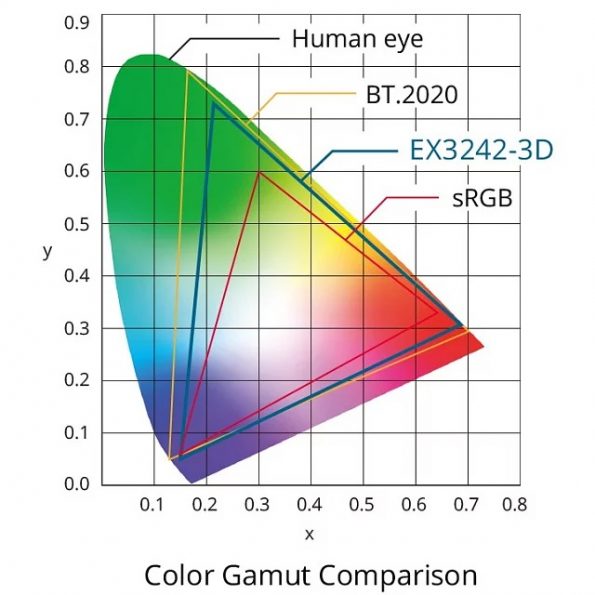

During procedures, the operating surgeon needs to be able to differentiate between varying color tones. The monitor supports the BT.2020 4K video color standard to ensure that subtle differences between shades of reds and yellows captured by BT.2020-supported cameras are distinguishable on the screen.
HDR (High Dynamic Range) is a range that approximates the human perception of color and light as content is shown on a display device. The monitor is equipped with the perceptual quantization (PQ) curve and hybrid log-gamma (HLG) for supporting HDR. This ensures images from HDR-supported endoscope cameras are displayed without crushing blacks and more closely resemble the human visual system.
Operating rooms contain various medical devices that are arranged according to the type of surgery. Safe handling and a sterile environment play a major role. EIZO’s surgical monitors adopt a flat design with rounded corners that promotes a safe environment and easy cleaning and disinfection. Furthermore, the front is covered with a fully flat protective glass with IP45 for protection against foreign material and splashes (the whole monitor has an IP32 rating).
With the attached cable cover, cables can be stored neatly out of sight, increasing safety and hygiene.
The monitor has protective glass with a hardness of 9H, making it resistant to impacts. Furthermore, the monitor is equipped with optical bonding, which removes the layer of air between the LCD panel and glass. This ensures foreign materials such as dust and moisture cannot damage the LCD panel.
Reflections on the screen of LCD monitors are caused when external light hits the screen and reflects off of the protective glass and layer of air at different refractive indices. Optical bonding removes the layer of air in order to lower the difference of refractive indices. This softens the reflections and produces a clear, highly visible image without affecting contrast.
Optical bonding prevents condensation from forming between the LCD panel and protective glass. This allows the monitor to maintain high visibility in harsh environments.
The monitor supports Side by Side, Line by Line, Top and Bottom, and Simulcast (SIMUL) 3D signal formats.
With BNC (12G-SDI), and DisplayPort or HDMI, 4K UHD images are displayed at 60 frames per second with a single cable over various modalities. When connected via BNC (12G-SDI), stable transmission is achieved even over long distances of 30 meters. In addition, the monitor is equipped with two BNC (12G-SDI), enabling connection to a wide range of devices, such as a 4K/3D microscope camera that can display clearly in Simulcast (SIMUL) format.
The monitor is also equipped with BNC (12G-SDI), DisplayPort, and DVI output terminals so input video can be passed through and output directly to the next monitor.
The same image is displayed on multiple monitors making information sharing among medical staff smooth in the operating room, while alleviating excess cabling.
Regardless of the orientation of the endoscopic camera, you can rotate the displayed 3D image by 180° or mirror it to find the perfect operating angle. This is suitable for matching the image with the line of sight of surrounding assistants and surgeons, improving convenience in the operating room.
With the parallax adjustment function, you can adjust 3D images both vertically and horizontally so that it displays a natural sense of depth.
Two separate signal sources can be viewed simultaneously on one monitor side by side when in 2D mode using the PbyP (Picture-by-Picture) or one displayed within an inset window over the other with the PinP (Picture-in-Picture) function (2D or 3D mode). This is useful in cases where vitals or ultrasound endoscopes need to be monitored simultaneously in addition to surgical images.
When displaying two signal sources side by side on the same screen, each image’s display mode (gamma 1.8 – 2.6 or DICOM Preset Mode) can be adjusted independently of the other image. This is useful for viewing two different modalities simultaneously under the correct display conditions (e.g. endoscope, CT, MRI).
The Auto Input Detection function automatically switches to another connected input port if the selected video signal is no longer detected.
This provides a fail-safe in the case that the video signal’s input is disrupted due to a system error or other external interference.
The supplied 3D polarizing glasses do not require batteries for operation and are lightweight. This makes them perfect for long surgeries where heavy, battery-operated glasses may fail or become uncomfortable. Furthermore, the glasses have an anti-fog coating to maintain clear vision even when wearing a surgical mask.
Typically HDMI cables cannot be locked into a terminal but this monitor contains a specialized locking mechanism on its side specifically for HDMI. This ensures all cables can be locked onto the monitor for consistent and stable connection.
In order to realize safe and reliable monitors that can be used with confidence at any medical institution, EIZO acquires various medical and safety/EMC standards.
As part of its corporate social responsibility (CSR) activities, EIZO is contributing towards the United Nations’ Sustainable Development Goals (SDGs).
Supporting a Healthy Life
Starting with our message “Making Each Life Visual”, we aim to support optimal medical care for each and every individual through accurate diagnosis and treatment afforded by our innovative healthcare technologies.
Learn more
Environmentally Friendly
Our healthcare products are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed in healthcare. We also implement a responsible after-service recycling system.
Learn more
| Model Variations | EX3242-3D-WT: without stand |
|---|---|
| Cabinet Color | White |
| Certifications & Standards (Please contact EIZO for the latest information) | CE / UKCA (Medical Device), ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1, IEC/EN60601-1, VCCI-A, FCC-A, CAN ICES-3(A), RCM, RoHS, China RoHS, WEEE, CCC, EAC, BIS |
| FDA | Class I |
| Supplied Accessories (May vary by country. Please contact EIZO for details) | AC power cord, AC adapter, 3D fogless polarized glasses x 3, screws for VESA adapter x 8, cable cover, Utility Disk (PDF installation manual), instructions for use |
| Type | TFT Color-LCD Panel (IPS) |
|---|---|
| Backlight | LED |
| Size | 81.3 cm / 32” |
| Native Resolution | 3840 x 2160 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 708 x 399 mm |
| Pixel Pitch | 0.185 x 0.185 mm |
| Display Colors | 10-bit colors (SDI / DisplayPort / HDMI): 1.07 billion colors (maximum) 8-bit colors: 16.77 million colors |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 850 cd/m² |
| Contrast Ratio (typical) | 1500:1 |
| Response Time (typical) | 20 ms (black-white-black) |
| Color Gamut (typical) | BT.2020 emulation |
| Input Terminals | DisplayPort (HDCP 1.3), HDMI (HDCP 1.4), BNC (12G-SDI) x 2, DVI-D (HDCP 1.4) |
|---|---|
| Output Terminals | DisplayPort, BNC (12G-SDI), DVI-D |
| Digital Scanning Frequency (H / V) | 18 – 136 kHz / 23 – 71 Hz |
| Power Input | AC 100 – 240 V: 50 / 60 Hz |
|---|---|
| Power Consumption | 205 W (maximum) |
| Power Output | DC 5V, 2A |
| Miscellaneous | 4K 3D (Side by Side, Line by Line, Top and Bottom, SIMUL), 3D (Side by Side, Line by Line, Top and Bottom, SIMUL), remote control (RS-232C), 180° rotation, Mirroring, Optical Bonding |
|---|---|
| Simultaneous Display | Picture-by-Picture (2 PbyP), Picture-in-Picture (PinP) |
| OSD Languages | English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese, Russian, Portuguese |
| Degree of Protection | IP45 (front), IP32 (rear) |
|---|
| Net Weight | 13.6 kg |
|---|---|
| Hole Spacing (VESA Standard) | 200 x 200 mm, M6, depth 7 – 12 mm / 100 x 100 mm, M4, depth 7 – 11 mm |
