TDL3600/TDL2300

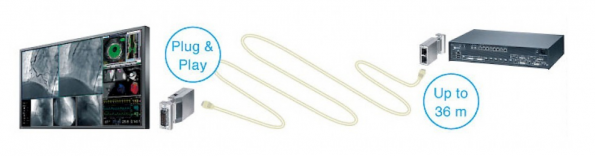

The DVI transmission links TDL3600 and TDL2300 allow high quality video data to be transmitted between PC and monitor over a distance of up to 36 meters without any loss of quality. This means that image signals can also be routed to ceiling mounted monitors. With conventional connection cables, error-free image transmission is only possible over a maximum distance of 5 meters.

Σε περίπτωση που θέλετε να υποβάλετε κάποιο αίτημα ενδιαφέροντος ή να κάνετε οποιαδήποτε ερώτηση σχετικά με το συγκεκριμένο προϊόν, παρακαλούμε συμπληρώστε την παρακάτω φόρμα και θα επικοινωνήσουμε μαζί σας το συντομότερο δυνατό.

Προσθήκη στα Αγαπημένα

Σύγκρινε

Robust Solution

The data is transmitted via highly qualified Ethernet cables and is characterized by its immunity to interference and easy installation. The transmitter and receiver modules are simply screwed onto the DVI interfaces on the PC and on the monitor.

Compact Design

The transmitter and receiver modules are characterized by low weight and small dimensions. The small RJ45 plugs on the cable make it possible to pass through narrow cable tubes and openings.

DVI Compatibility

The TDL transmission links enable image signals to be transmitted in accordance with the DVI standard. The monitor-specific characteristic data (EDID) is also transferred over the links.

Immediately Ready for Use

The transmitter and receiver modules do not have any operating elements. Manual settings are not required, all parameters required for operation are automatically optimized. All relevant signals are transmitted without user intervention. Modules do not have their own switches and are switched on together with the PC or monitor.

Maintenance-Free System

Maintenance and servicing work is not necessary for the modules and cables. Only the cables supplied may be used without additional plug connections in order to guarantee trouble-free operation.

Status Display

LEDs on the transmitter and receiver modules indicate the respective operating status.

Compatible Products

RadiForce LS580W

Monitor
146 cm(57.5″)
4K UHD
DVI

RadiForce LL580W

Monitor
146 cm (57.5″)
4K UHD
DVI

Specifications

General

Model Variations	TDL3600-QL: Quad Link, 36m TDL3600-DL: Dual Link, 36m TDL3600-SL: Single Link, 36m TDL2300-SL: Single Link, 23m
Cabinet Color	Silver
Certifications & Standards (Please contact EIZO for the latest information)	CE, IEC/EN60601-1, CAN/CSA C22.2 No. 60601-1:08, ANSI/AAMI ES60601-1:2005, EN60601-1-2 Class B, FCC-A, RCM, RoHS, China RoHS, WEEE
Supplied Accessories (May vary by country. Please contact EIZO for details)	TDL3600-QL: Transmitter x 2, Receiver x 2, mounting set for LX550W/LS580W/LL580W, mounting set for LMM56800/LMM0802, 36 m cable x 4 TDL3600-DL: Transmitter, Receiver, 36 m cable x 2, AC adapter TDL3600-SL: Transmitter, Receiver, 36 m cable, AC adapter TDL2300-SL: Transmitter, Receiver, 23 m cable, AC adapter Utility Disk (PDF Instructions for Use)

Video Signals

Input Terminals	TDL3600-QL: DVI-D (Dual Link) x 2 TDL3600-DL: DVI-D (Dual Link) TDL3600-SL / TDL2300-SL: DVI-D
Input Resolution	TDL3600-QL: 3840 x 2160 TDL3600-DL: 2560 x 1600 TDL3600-SL / TDL2300-SL: 1920 x 1200
Output Terminals	TDL3600-QL: DVI-D (Dual Link) x 2 TDL3600-DL: DVI-D (Dual Link) TDL3600-SL / TDL2300-SL: DVI-D
Output Resolution	TDL3600-QL: 3840 x 2160 TDL3600-DL: 2560 x 1600 TDL3600-SL / TDL2300-SL: 1920 x 1200

Features & Functions

Control and Status	LEDs (power, status)

Power

Power Requirements	PC side: through DVI interface Monitor side: 5 V support from monitor Optional: 5 V external power supply

Environmental Requirements

Degree of Protection	IP20

Physical Specifications

Net Weight	0.1 kg (each transmitter and receiver, without cable)
Mechanical Installation	Transmitter module at PC side (DVI-D ~ RJ45) TDL cable (RJ45 ~ RJ45) Receiver module at monitor side (RJ45 ~ DVI-D)
