PDS0800-HD

PDS0800-HD

DVI splitter for connecting two 8MP monitors to a Large Monitor Manager. An Full HD monitor can also be connected. The output signal of the Large Monitor Manager can thus be displayed simultaneously on two 8MP monitors and one Full HD monitor (downscaling).

Σε περίπτωση που θέλετε να υποβάλετε κάποιο αίτημα ενδιαφέροντος ή να κάνετε οποιαδήποτε ερώτηση σχετικά με το συγκεκριμένο προϊόν, παρακαλούμε συμπληρώστε την παρακάτω φόρμα και θα επικοινωνήσουμε μαζί σας το συντομότερο δυνατό.

Σύγκρινε

Connection of two 8MP Monitors

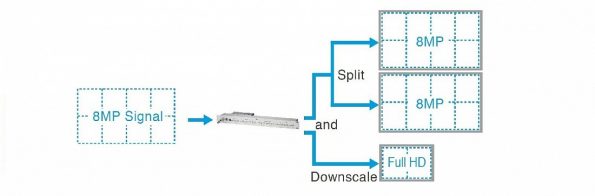

The PDS0800-HD repeats and doubles the output of the Large Monitor Manager LMM56800 or LMM0802-HDM that two 8 megapixel monitors can be connected. The image composition arranged by the Large Monitor Manager is displayed simultaneously on both connected monitors. The 8MP signals are each transmitted via two DVI Dual Link signals (A + B).

Additional Downscaling

The HD output of the PDS0800-HD generates an additional signal with a downscaled Full HD representation of the 8MP picture. This means that an additional Full HD monitor can be connected to display the image composition arranged by the Large Monitor Manager in a lower resolution. The HD output can also be used without connecting an 8MP monitor.

Operation with a Large Monitor Manager

If the PDS0800-HD is operated with a Large Monitor Manager (LMM), it can be controlled via the user interface of the LMM. During operation, the LEDs on the PDS0800-HD indicate the respective connection status.

Installation facile

The compact dimensions and low weight of the PDS0800-HD allow easy installation in a rack.

Use of two DVI-Splitters

Up to two PDS0800-HD can be connected in series, the address of the DVI-Splitters is set with rotary controls.

Redundant Power Supply

The PDS0800-HD is supplied with one power supply unit. Another power supply unit can be connected for redundant power supply. This is available as an accessory.

Power Supply for DVI Connectors

All DVI connections (outputs and inputs) are provided with a 5V power supply. Thus a DVI transmission link (TDL3600 or TDL2300) can be connected without an external supply. The 5V power supply at the inputs of the PDS0800-HD can be switched off.

Specifications

General

Cabinet Color	Light Gray
Certifications & Standards (Please contact EIZO for the latest information)	CE, IEC/EN 62368-1, EN55032, EN55024, FCC-A, RoHS, WEEE AC adapter: CE, IEC/EN 62368-1
Supplied Accessories (May vary by country. Please contact EIZO for details)	Adapter mini DIN to 3 x cinch, AC adapter
Optional Accessories	AC adapter

Video Signals

Input Terminals	DVI-D (Dual Link) x 2 (A+B)
Input Resolution	8MP (4096 x 2160: 2048 x 2160 x 2, 60 Hz) 8MP (UHD, 3840 x 2160: 1920 x 2160 x 2, 60 Hz)
Output Terminals	DVI-D (Dual Link) x 4 (A+B x 2), DVI-D (Single Link), mini DIN (YPbPr)
Output Resolution	8MP (4096 x 2160: 2048 x 2160 x 2, 60 Hz) 8MP (3840 x 2160: 1920 x 2160 x 2, 60 Hz) Downscale-Output (with UHD input resolution only): FHD (1920 x 1080, 60 Hz) Analog / Composite (1920 x 1080, 60 Hz)
