CuratOR Surgical Panel SP1-654K
The Surgical Panel SP1-654K with integrated monitor as well as build-in IT and video management components is a digital image viewing system, designed for use in the operating room. Integrated into the hospital’s IT structure, it supports various workflows. The SP1-654K provides the OR team with a perfect view also from remote locations in the operating room.
- Built-in 65” monitor (touchscreen option)
- Workstation for image viewing
- Space-saving wall mounting
- High ease of service and maintenance
- Flexible choice of material, configuration and accessories
- Completely sealed within the OR and disinfectable
Optimized View Through Simple LUT Switching
Every 4K Surgical Panel is equipped with an easy-access LUT switch as standard. One of the five predefined lookup tables can be selected at the simple press of a button. This allows operators to display various medical images and videos under optimal viewing settings.
Customized Housing
The housing dimensions of the Surgical Panel can be individually adapted to the conditions in the operating room. In addition, the housing color can be selected from the RAL color palette depending on the color concept on site.
Wide Ranging Monitor Options
The Surgical Panel are available in a wide range of screen diagonals for flexibly meeting local application requirements. The option to combine a viewing unit with a 24“ Full HD HIS workstation also offers a full viewing environment while saving on space.
Intuitive Touch Operation
Every CuratOR Surgical Panels can be equipped with a touchscreen to facilitate intuitive operation of software in the OR. They are easily operated while wearing gloves for use in sterile environments.
Flexible Integrated Video Management VMbasic
A modular interior design enables customer-specific configuration. Every 4K Surgical Panel can be optionally equipped with the video management function VMbasic. Easily switch between video signals connected internally or optionally on the front at the simple press of a button. Two further buttons allow the selection of the preset layouts and the rotation of the video inputs by keeping the active layout.
Accessories and Connectivity
Surgical Panel have front USB ports as standard for connecting peripheral devices. There is also the option of integrating additional interfaces on the front frame. These can be individually connected to the inputs available in video management.
OR Integration and Cleanability
With its flat surface, the Surgical Panel can be completely sealed in the front and integrated in the OR wall, ensuring safety and simple cleaning and disinfection procedures. With intelligent heat distribution over the front surface, the units do not require specialized ventilation systems.
Flexible Mounting Options
The device is designed for both surface or flush-mounted installation to allow easy fit into the local architectural preferences and physical circumstances on site.
Easy Maintenance and Service
The hinged front allows easy access to the device without complicated disassembly or tools. With its unique locking system, no screws need to be taken out, making maintenance procedures on the installed components simple and efficient.
Compatible Products
- OR Software
- The software for efficient OR integration.
Specifications
General |
|||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||
Housing |
|||||||||||||||||||||
|
|||||||||||||||||||||
Panel 65″ (4K) |
|||||||||||||||||||||
|
|||||||||||||||||||||
Hardware & Software Components |
|||||||||||||||||||||
|
|||||||||||||||||||||
Inputs (front side) |
|||||||||||||||||||||
|
|||||||||||||||||||||
Push Buttons (front side) |
|||||||||||||||||||||
|
|||||||||||||||||||||
Power |
|||||||||||||||||||||
|
|||||||||||||||||||||
Physical Specifications |
|||||||||||||||||||||
|
|||||||||||||||||||||

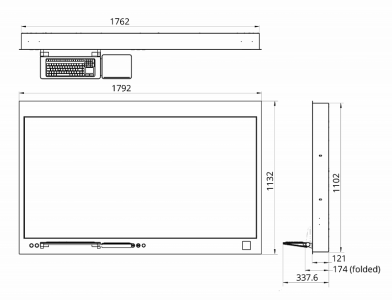

Dimensions
Downloads
Brochures
